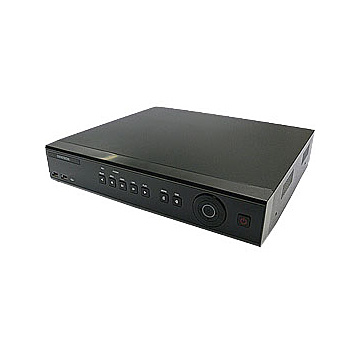

Rifatron Universal HD-SDI DVR MX3-04u 1000GB
SKU
rftr-mx3-04u
Not available
698.34EUR 556.45EUR
4 Universal HD-SDI inputs. Full-HD record resolution 1080p@100fps. HDD 1000GB included. Internet/HDMI/VGA/USB/eSATA/Audio/RS-485. Alarm in/out.
Details
4-channel compact and powerful universal HD-SDI Digital Video Recorder.
*4x Digital HD-SDI BNC video inputs.
*4x Universal BNC-video inputs, support HD-SDI and analog cameras.
*Record resolution 1920x1080@100fps.
*1000GB HDD included for 7 days of continuous recording.
*Record motion detection, timed and alarm.
*Internet-function with RJ45 Ethernet connection, can be connected to router or PC.
*Internet remote live view, recordings, settings and relay control.
*Internet remote view supported by PC Windows, Mac, iPad, iPhone, Android, Windows Phone and Symbian.
*HDMI and VGA monitor outputs.
*USB for backups and USB-mouse.
*RS-485 for PTZ-cameras.
*Control the DVR with USB-mouse (not included), remote controller, front buttons and Internet.
*4x Digital HD-SDI BNC video inputs.
*4x Universal BNC-video inputs, support HD-SDI and analog cameras.
*Record resolution 1920x1080@100fps.
*1000GB HDD included for 7 days of continuous recording.
*Record motion detection, timed and alarm.
*Internet-function with RJ45 Ethernet connection, can be connected to router or PC.
*Internet remote live view, recordings, settings and relay control.
*Internet remote view supported by PC Windows, Mac, iPad, iPhone, Android, Windows Phone and Symbian.
*HDMI and VGA monitor outputs.
*USB for backups and USB-mouse.
*RS-485 for PTZ-cameras.
*Control the DVR with USB-mouse (not included), remote controller, front buttons and Internet.
Package includes
1x Rifatron Universal HD-SDI DVR MX3-04u 1000GB
1x AC-power adapter
1x Software and manual CD
1x AC-power adapter
1x Software and manual CD
Specifications
| Model | MX3-04u (HD-SDI) |
| Camera Input | 4 Universal HD-SDI/analog (max 1080p) |
| Video output | 1 HDMI/VGA |
| Audio Input | 4 RCA |
| Audio Output | 1 HDMI/RCA |
| Compression | H.264 / G.711U |
| Recording Speed | 1080p 100fps (PAL) |
| Recording Resolution | 1080p (1920x1080 Full-HD) |
| Display Resolution | HDMI:Full-HD, HD, WSxGA,SxGA/VGA:SxGAWSxGA |
| Storage | 2 HDD + 1 eSata |
| Backup Interface | USB2.0, Network |
| Network Interface | Ethernet 10/100/1000 |
| PTZ Interface | 2 RS-485, Terminal block |
| Alarm I/O | 4/1 NC/NO |
| Power Supply | DC12V / 5A |
| Consumption | 40W |
| Operating Temperature | 5-40C |
| Humidity | 10-80% |
| Weight | 3Kg (Without HDD) |
| Dimension | 340 x 59 x 300mm |
| Video signal | Analog (960H), HD-SDI |
|---|
