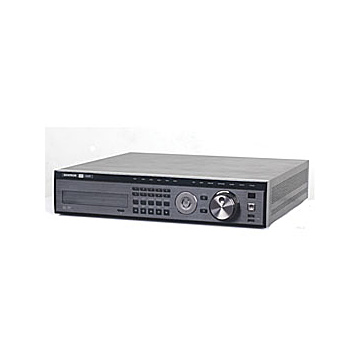

Rifatron DVR HD1-16 4000GB
SKU
rftr-hd1-16
Not available
1,771.17EUR 1,411.29EUR
High end 16 channel DVR. H.264 compression. 960H technology record 960x576@400fps! Internet/LAN, VGA, HDMI, USB, eSata support. DVD-RW built-in. HDD 4000GB.
Details
*High-End nPlus DVR, 16 channels.
*H.264 video codec.
*Record 960x576 @ 400fps, each channel at maximum 25fps speed!
*4000GB HDD storage space, automatic overwriting.
*Maximum of 6 HDD slots.
*eSata connection for external HDDs.
*HDMI, VGA and BNC video output.
*HDMI-output with Full HD resolution.
*Two way audio, audio detection.
*Internet/LAN for remote view, backup and settings.
*Mobile 3G viewer for cell phones.
*NAS network backups.
*Continuous, motion and sensor recording.
*Adjustable motion detection.
*Schedule recording.
*Individual settings for each channel.
*Easy to use and power search function (calendar, timeline, smart search).
*Backup to DVD-RW, USB memory stick and network.
*User account and password protection.
*CMS-software included.
*Pre-alarm function.
*Email notifications.
*H.264 video codec.
*Record 960x576 @ 400fps, each channel at maximum 25fps speed!
*4000GB HDD storage space, automatic overwriting.
*Maximum of 6 HDD slots.
*eSata connection for external HDDs.
*HDMI, VGA and BNC video output.
*HDMI-output with Full HD resolution.
*Two way audio, audio detection.
*Internet/LAN for remote view, backup and settings.
*Mobile 3G viewer for cell phones.
*NAS network backups.
*Continuous, motion and sensor recording.
*Adjustable motion detection.
*Schedule recording.
*Individual settings for each channel.
*Easy to use and power search function (calendar, timeline, smart search).
*Backup to DVD-RW, USB memory stick and network.
*User account and password protection.
*CMS-software included.
*Pre-alarm function.
*Email notifications.
Package includes
1x Rifatron DVR HD1-16 4000GB
1x Remote controller
1x AC power adapter
1x Rackmount brackets
1x Software CD
1x Manual (English)
1x Remote controller
1x AC power adapter
1x Rackmount brackets
1x Software CD
1x Manual (English)
Specifications
| Model | HD1-16 | |
| Type | 16Ch - 960H 400fps Standalone | |
| OS | Embedded Linux - Built in Flash Memory | |
| Users | 5 Level(User) | |
| Video Input | 16 BNC | |
| Video Output | HDMI, VGA, BNC | |
| Loop Output | 16 BNC | |
| Spot Output | 1 BNC - Multichannel (16/9/4/1) | |
| Audio Input | 16 RCA | |
| Audio Output | 1 RCA, HDMI | |
| Audio Sampling Ratio | 16KHz | |
| Audio Bit Rate | 32Kbps | |
| Recording Compression | H.264 / G.711U | |
| Recording Speed | 1/10, 1/2, 1 ~ 25fps, Total max. 960H 400fps | |
| Recording Resolution | CIF, 2CIF, 4CIF, 960H | |
| Recording Mode | Continuous, Event (Sensor, Motion, Audio, Pattern, Text), Schedule | |
| Recording Bit Rate | 32Kbps ~ 8Mbps/Ch, Adjustable | |
| Transmission Compression | H.264 or JPEG | |
| Transmission Speed | Total max. Q960H 8fps/ch | |
| Transmission Resolution | Max 960H | |
| Transmission Mode | Bandwidth Control | |
| Display Resolution | HDMI : Full HD(1920x1080), WSXGA+(1680x1050), SXGA(1280x1024) VGA : WSXGA+(1680x1050), SXGA(1280x1024) BNC : SDTV(720x480(576)) | |
| Display Mode | LIVE : 16, 9, 4, 1, Big, Biggest, Sequence, Zoom P.B : 16, 9, 4, 1, Zoom | |
| Alarm Interface | 16 Sensor Input, NC/NO - Terminal Block 4 Relay Output, NC/NO - Terminal Block | |
| External Storage Interface | eSATA, USB2.0 | |
| PTZ / Controller Interface | RS485 Half Duplex - Terminal Block | |
| POS / ATM Interface | 8 RS232C Simplex - Terminal Block | |
| Serial Interface | RS232C Full Duplex - DSUB9 | |
| Backup Interface | eSATA, USB2.0, DVD, Network | |
| Network Interface | Ethernet 10/100/1000 - RJ45 | |
| Internal HDD Bay | 6 SATA | |
| Internal ODD Bay | 1 SATA | |
| System Access Control | Front Push Button, USB2.0 Mouse, IR Remote Controller, Keyboard Controller, Network | |
| System Upgrade | USB2.0 Memory Stick, Network | |
| Power | 90 ~ 250V, 50/60Hz | |
| Max. Power Consumption | 80 Watts | |
| Operating Temperature | 5 ~ 40 OC | |
| Humidity | 10 ~ 80% | |
| Weight without HDD | 8Kg | |
| Dimensions | 440 x 88 x 430 mm | |
| Certifications | FCC, CE | |
| Video signal | Analog (960H) |
|---|
