rBOX100
SKU
rBOX100-FL 1.1G
Lead time 14-22 days

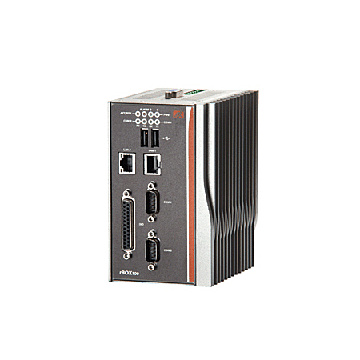

Robust Din-rail Fanless Embedded System with Intel® Atom™ Processor Z510PT 1.1 GHz, Intel® US15WPT Chipset and DIO
Details
* Fanless operation
* Wide temperature operation of -40°C ~ +70°C
* Supports 2 COM ports, 2 USB ports, 1 DIO (8 in/out), VGA port
* Supports one 10/100/1000Mbps & one 10/100Mbps
* Ethernet with Magnetic Isolation Protection
* SNMP V1/V2c
* Support CompactFlash™
* Redundant power input with terminal block and 12 ~ 48VDC
* Supports AXView monitoring software package
* Wide temperature operation of -40°C ~ +70°C
* Supports 2 COM ports, 2 USB ports, 1 DIO (8 in/out), VGA port
* Supports one 10/100/1000Mbps & one 10/100Mbps
* Ethernet with Magnetic Isolation Protection
* SNMP V1/V2c
* Support CompactFlash™
* Redundant power input with terminal block and 12 ~ 48VDC
* Supports AXView monitoring software package
Specifications
rBox100
* Z510PT (1.1 GHz) Atom Cpu
*1024MB DDR RAM
* Z510PT (1.1 GHz) Atom Cpu
*1024MB DDR RAM
Files and drivers
Processor Core Logic System
CPU:
Intel® Atom ™ processor Z510PT (1.1 GHz) or Z520PT (1.33 GHz)
System Board:
RM820
System Memory:
1 x 200-pin DDR2 SODIMM max. up to 2 GB
I/O Interface Rear
2 x RS232/422/485 (COM 1/2)
1 x 10/100/1000Mbps Ethernet with Magnetic Isolation Protection
1 x 10/100Mbps Ethernet with Magnetic Isolation Protection
2 x USB 2.0
1 x DIO (8 in/out)
1 x VGA
1 x DC power input with terminal block
Storage
1x CF-slot onboard
Power Supply
12 ~ 48VDC
Environment Specifications
Operating Temperature -40°C ~ 70°C
Storage temperature: -45°C ~ 85°C
Humidity: 5% ~ 95% (non-condensing)
Safety: CE, Please see datasheet for other
Mechanical
Construction: Steel /aluminium housing
Mounting: DIN rail
Dimension: 81 mm (W) x 110 mm (D) x 135 mm (H)
Weight: 1.8 kg
For more information see datasheet.
