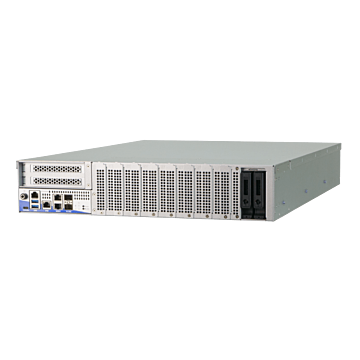

PUZZLE-9040-R 2U rackmount Network Appliance

* Required Fields

Your Customization
PUZZLE-9040
PUZZLE-9040

0.00EUR

Summary
    SKU
    PUZZLE-9040
    Lead time 21-30 days

    0.00EUR

    2U Rackmount Network Appliance with Intel® Xeon® Scalable processors

    • Dual 4th Gen Intel® Xeon® Scalable processors (Code name: Sapphire Rapids)
    • DDR5 4800 MHz ECC RDIMM (up to 4 TB)
    • 1 x PCIe Gen 4 x16 FHFL
    • 8 x OCP 3.0 slots (6 x PCIe Gen 5 x16, 2 x PCIe Gen 4 x16)
    • 2 x 10GbE SFP+ (Intel X710-BM2)
    • 2 x 1GbE RJ45 (Intel i350-AM2)
    • 1 x GbE RJ45 IPMI management port
    • 2 x U.2 slots with Removable Tray (PCIe 4.0 x4)
    • 1 x 2280 M-Key (PCIe 4.0 x4)
    • Redundant power supply (CRPS)
    System
    Processor 2 x 4th Gen Intel® Xeon® Scalable processors
    (Code Name: Sapphire Rapids)


    Memory 16 x DDR5 4800MHz ECC RDIMM slot
    Chipset Intel® C741
    Storage 1 x M.2(NGFF) 2280 M-Key (PCIe 4.0 x4)
    2 x U.2 : External 2.5” Removable Trays
    (Supports 2.5” U.2 PCIe x4 NVMe)
    Expansion 1 x PCIe x16 FHFL
    8 x Standard OCP 3.0 Network Module
    TPM 1x TPM2.0 pin header
    Chassis
    Form Factor 2U
    Dimensions 438 x 88.5 x 623mm
    Weight (kg) 25kg
    I/O Ports
    USB 2.0 -
    USB 3.0 2x USB3.0
    Serial
    Video
    IPMI 1 x M.2 Socket B Key support IEI iRIS2 IPMI module
    1 x 1 GbE RJ45 for IPMI port
    Ethernet 2 x SFP+ 10GbE (Intel X710)
    2 x LAN : 1 GbE RJ45 ports (Intel I350)
    Other Ports 1 x Console port(s) : USB type C and 1 x RJ45 auto-switching
    Operating System
    Operating System Linux Ubuntu
    Power & Mechanical
    DC Input / Source Voltage 230V AC input
    2000W CRPS Redundant Power
    Processor Cooling 2 x Passive CPU Heatsink
    System Cooling 4 x System FAN
    Operating Temperature
    Operating Temperature 0ºC to 40ºC
    Humidity Range 10% to 95% non-condensing
    Certification
    Certification CE
    Other by customer request
    More Information
    CoolingChassis Fan
    Operating TempNormal Temp 0..45C
