PUZZLE-7030A
SKU
PUZZLE-7030A-xx
Lead time 21-30 days
0.00EUR

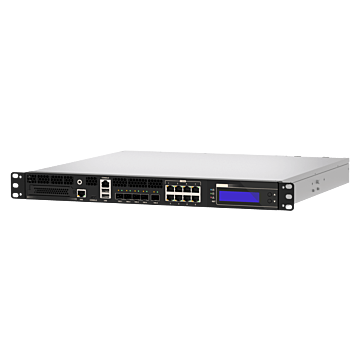

1U Rackmount Network Appliance with Intel Ice Lake-D LCC processor
- Intel® Xeon® D Processor series (Code Name: Ice Lake-D LCC)
- 4 x DDR4 2400M/2933Hz ECC UDIMM/RDIMM, up to 256G
- 8 x 2.5 Gbps RJ-45 LAN ports & 5 x 10 Gbps SFP+ ports
- 1 x FH PCIe Gen4 x8 or 2 x FH PCIe Gen4 x4 and 1 x OCP 3.0 slot
- 1 x RJ-45 Console, 2 x USB 3.0, LCM
- 2 x 2.5” SATA slot, 2 x M.2 M key 2280 (SATA/PCIe Gen3 x2)
- 1 x M.2 B key for IPMI module (support IEI iRIS2 IPMI module)
- 320W Redundant Power Supply
| System | |
| Processor | Intel Ice Lake-D D-1733NT processor Intel® Xeon® D Processor series (Code Name: Ice Lake-D LCC) |
| Memory | DDR4 2400M/2933Hz ECC UDIMM/RDIMM |
| Chipset | Integrated in CPU |
| Storage | 2 x 2.5” SSD/HDD Bay: support SATA 3.0 (6 Gbps) 2 x 2280 M-Key (PCIe 3.0 x2) |
| Expansion | 1 x PCIex8 (Gen4) 1 x Standard OCP 3.0 Network Module |
| TPM | 1x TPM2.0 pin header |
| Chassis | |
| Form Factor | 1U |
| Dimensions | 438 x 44.2 x 454mm |
| Weight (kg) | 8kg |
| I/O Ports | |
| Console | 1 x RJ45 1 x USB Type-C |
| USB 3.0 | 2 x USB3.0 |
| Serial | |
| Video | |
| IPMI | 1 x M.2 Socket B Key support IEI iRIS2 IPMI module 1 x 1 GbE RJ45 for IPMI port |
| Ethernet | 8 x 2.5 GbE RJ45 LAN ports 5 x 10 GbE SFP+ |
| Other Ports | 1 x Console port(s) : USB type C and 1 x RJ45 auto-switching |
| Operating System | |
| Operating System | Linux Ubuntu |
| Power & Mechanical | |
| DC Input / Source Voltage | 230V AC input 320W Redundant Power |
| Processor Cooling | 4 x CPU Fan |
| System Cooling | 3 x System FAN |
| Operating Temperature | |
| Operating Temperature | -10ºC to 50ºC |
| Humidity Range | 10% to 95% non-condensing |
| Certification | |
| Certification | CE Other by customer request |
| Cooling | Chassis Fan |
|---|---|
| Operating Temp | Wide Temp -10..50C |
