PUZZLE-5030

Customize PUZZLE-5030
PUZZLE-5030-XE2

* Required Fields

Your Customization
 PUZZLE-5030
PUZZLE-5030

0.00EUR

Summary
    SKU
    PUZZLE-5030-XE2-R10
    Lead time 21-30 days

    0.00EUR

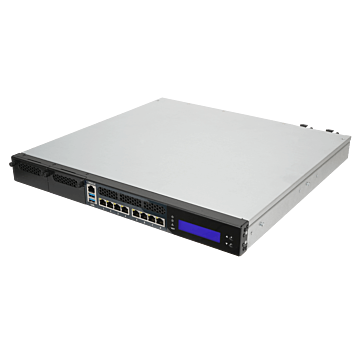

    1U Rackmount Network Appliance support Intel® Gen8 Xeon® E-2378, 4 DDR4 slots, 8 x 2.5GbE , 2 PulM slots , 2 PCIe expansion, Redundant Power

    •   Intel® Gen8 Xeon® E-2378
    • DDR4 3200MHz ECC/Non-ECC UDIMM , up to 128G
    • 8 x 2.5 Gbps RJ-45 LAN ports & 2 pairs LAN bypass
    • 2 x Standard PCIe slot (1 x PCIe Gen4 x4, 1 x PCIe Gen4 x8)
    • 2 x PulM network module
    • 1 x RJ-45 Console, 2 x USB 3.0
    • 2 x 2.5” SATA HDD/SSD bay support SATA 3.0 (6 Gbps)
    • 300W Redundant Power Supply
    System
    Processor Intel® Gen8 Xeon® E-2378


    Memory DDR4 3200MHz ECC/Non-ECC UDIMM
    Chipset Intel C256
    Storage 2 x 2.5” SSD/HDD Bay: support SATA 3.0 (6 Gbps)
    Expansion 1 x PCIe x8 : Standard PCIe Gen 4 x8 (FHHL)
    1 x PCIe x4 : Standard PCIe Gen 4 x4 (FHHL)
    1 x PCIe mini Card Slot : with SIM card slot (PCIe Gen3 x1)
    1 x M.2(NGFF) : M key 2260/2280 support PCIe Gen4 x2 or SATA 6Gb/s
    TPM 1x TPM2.0 pin header
    Chassis
    Form Factor 1U
    Dimensions 430 x 44.2 x 426mm
    Weight (kg) 10kg
    I/O Ports
    Console 1 x RJ45
    USB 3.0 4 x USB 3.0
    2 x USB 3.0 on the front panel
    2 x USB 2.0 by pin header
    Serial
    Video HDMI
    IPMI 1 x M.2 Socket B Key support IEI iRIS2 IPMI module
    1 x 1 GbE RJ45 for IPMI port
    Ethernet 8 x LAN : 2.5 GbE RJ45 (Intel® I225V-AT)
    two pairs bypass; Port 1 support WOL
    Other Ports 1 x Console port(s) : USB type C and 1 x RJ45 auto-switching
    Operating System
    Operating System Linux Ubuntu
    Power & Mechanical
    DC Input / Source Voltage 230V AC input
    300W Redundant Power
    Processor Cooling 3 x Cooling Fans with Smart Fan
    System Cooling 1 x System FAN
    Operating Temperature
    Operating Temperature 0ºC to 40ºC
    Humidity Range 10% to 95% non-condensing
    Certification
    Certification CE
    More Information
    CoolingChassis Fan
    Operating TempNormal Temp 0..45C
