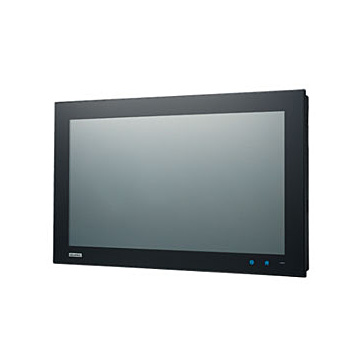

PPC-4211W-P5AE

* 21.5" Full HD entirely flat panel with Projected capacitive touchscreen
* High perofrmance Intel Core i CPU with Fanless design
* Optional 2nd SATA 2.5" HDD bay
* PCIe x4 / x1 or PCI expansion support
* Automatic data flow control over RS-485
* Wide Range DC 12-32V support
* Dual Gigabit ethernet, support IEEE1588
* 3 x Independent display

LCD Specifications
21.5" TFT (LED backlight)
Resolution : 1920x1080
Brightness : 300 cd/m²
Contrast Ratio : 1000:1
Viewing Angle (H-V): 176/176

Touchscreen
Projected Capacitive multi touch 4 point

Processor Core Logic System
CPU:
2.9Ghz Core i5-4300U

System Memory:
1 x 204-pin SODIMM, DDR3L (max 8GB)

Ethernet
2x GBe LAN
*Intel I211-AT, Intel I218LM

I/O Interface
4 x RS-232
1 x RS-422/485 with isolation 1K VDC
4 x USB 3.0 ports in rear side
1 x USB 2.0 in right side
1 x Line-out, 1x MIC-in
1 x DB15 VGA
1 x Display Port (1.2)


Storage
2 x 2.5" SATA II HDD bays
1 x mSATA

Expansion
1 x mPCIE

Power Supply
230V AC input

Software Support
Win7 / Win8

Environment Specifications
Operating Temperature 0°C to 50°C
Storage temperature: -20°C ~ 60°C
Humidity: 10% ~ 90% (non-condensing)


Mechanical
Mounting: Panel, VESA

Diameters: 557.77 x 349.17 x 63.6 mm

Safety: CE

Weight: 7.8kg
