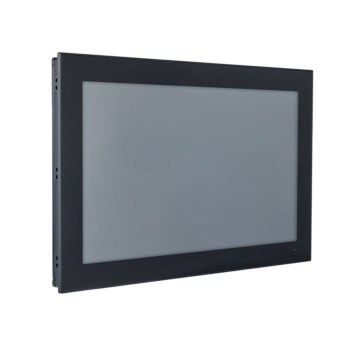

    21.5" Fanless Panel PC with Intel® Celeron® J6412 Processor
    • Industrial-grade 21.5" Full HD TFT LCD with 50K backlight lifetime
    • Durable true-flat touchscreen with projected capacitive touch control
    • Intel® Celeron® J6412 quad-core, 2.6 GHz, processor
    • Up to 32 GB DDR4 SDRAM
    • 1 x RS-232, 1 x RS-232/422/485, 2 x USB 2.0, and 2 x USB 3.0
    • Compact, fanless design with solid aluminum alloy enclosure and IP65-rated front panel
    • Supports E-key for wireless module
    • Supports expansion via M.2 slot
    • Supports Windows Embedded and Android OS
    System
    Processor Intel Celeron J6412


    Memory 1 x SDRAM, DDR4 max 32GB
    Chipset SoC
    Storage 1 x 2.5" SATA HDD Bay
    1 x M.2 M key for Storage, SATA
    Expansion 1 x M.2 E key for wireless, 2230


    Display
    Screen Size 21.5" TFT LCD
    Screen Resolution 1920*1080
    Display Ratio wide
    Contrast Ratio 1000
    Brightness 250 nits
    Viewing Angle
    Number of Colors
    Touch Screen
    Touchscreen Projected Capacitive (Multi-touch)
    I/O Ports
    USB 2.0 2x USB2.0
    USB 3.0 2x USB3.0
    Serial 1 x RS-232
    1 x RS-232/422/485
    Video 1 x HDMI
    Ethernet 2 x RJ45 GbE
    Other Ports
    Operating System
    Operating System Windows 10, Linux , Android10
    Power
    DC Input / Source Voltage 12-30V DC
    Power Comsumption 42W
    Operating Temperature
    Operating Temperature 0ºC to 50ºC
    Humidity Range 10% to 95% non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 7.26 kg
    Dimensions 558mm x 350mm x 61mm
    Enclosure
    Protection IP65 Front
    Material
    Mounting Panel Mount, VESA


    Certification
    Certification CE / FCC
    More Information
    CoolingFanless
    Display Size21.5"
    Touch typeProjected Capasitive (PCAP)
