PPC-310 EHL

SKU

PPC-310_x

Lead time 21-30 days

0.00EUR

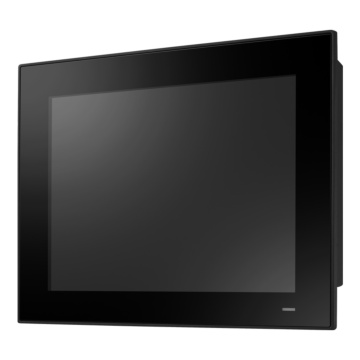

10.4" Fanless Panel PC with Intel® Celeron® N6210 Processor

Industrial-grade 10.4" XGA TFT LCD with 30K backlight lifetime
Durable true-flat touchscreen with 5-wire resistive/projected capacitive touch control
Intel® Celeron® J6412 quad-core, 2.0 GHz, processor
Up to 32 GB DDR4 SDRAM
1 x RS-232, 1 x RS-232/422/485, 2 x USB 2.0, and 2 x USB 3.1
Compact, fanless design with solid aluminum alloy enclosure and IP66-rated front panel
Supports E-key for wireless module
Supports expansion via M.2 slot
Supports Windows Embedded Linux and Android OS

System
Processor	Intel® Celeron® N6210 1.2GHz Dual-Core

Memory	1 x DDR4 SO-DIMM Slot
Chipset	SoC
Storage	1 x M.2 slot: M key for storage (SATA only, 2242)
Expansion	1 x M.2 slot : E key for wireless module (Type: 2230)

Display
Screen Size	10.4" TFT LCD
Screen Resolution	1024*768
Display Ratio	4::3
Contrast Ratio
Brightness	350 nits
Viewing Angle
Number of Colors
Touch Screen
Touchscreen	5-wire resistive touch / PCAP
I/O Ports
USB 2.0	2x USB2.0
USB 3.0	1x USB3.0
Serial	1 x RS-232/422/485 1 x RS-232
Video
Ethernet	2 x 10/100/1000/2500 Mbps Ethernet (Intel I226-LM)
Other Ports
Operating System
Operating System	Windows 10/ Windows 11 / Linux / Android
Power
DC Input / Source Voltage	12-24V DC
Power Comsumption	35W
Operating Temperature
Operating Temperature	-10ºC to 50ºC
Humidity Range	10% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution	Passive - Fanless
Dimensions / Weight
Weight (kg)	3 kg
Dimensions	272 x 217 x 46 mm
Enclosure
Protection
Material	Steel / Plastic
Mounting	-

Certification
Certification	CE, FCC Class B, BSMI, UKCA, VCCI
