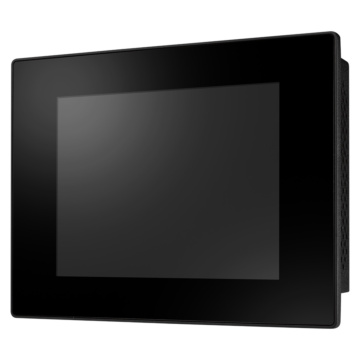

    6.5" Fanless Panel PC with Intel® Celeron® N6210 Processor

    • Industrial-grade 6.5" VGA TFT LCD with LED backlight
    • Durable true-flat touchscreen with 5-wire resistive touch control
    • Intel® Celeron® N6210 dual-core, 1.2 GHz, processor
    • Up to 32 GB DDR4 SDRAM
    • Compact, fanless design with IP66-rated front panel
    • Supports expansion via M.2 slot
    • Supports VESA 75 x 75 mounting holes
    System
    Processor Intel® Celeron® N6210 1.2GHz Dual-Core


    Memory 1 x DDR4 SO-DIMM Slot
    Chipset SoC
    Storage 1 x M.2 slot: M key for storage (SATA only, 2242)
    Expansion 1 x M.2 slot : E key for wireless module (Type: 2230)


    Display
    Screen Size 6.5" TFT LCD
    Screen Resolution 640*480
    Display Ratio 4::3
    Contrast Ratio 1000::1
    Brightness 800 nits
    Viewing Angle
    Number of Colors
    Touch Screen
    Touchscreen 5-wire resistive touch
    I/O Ports
    USB 2.0 1x USB2.0
    USB 3.0 1x USB3.0
    Serial 1 x RS-232/422/485
    1 x RS-232
    Video
    Ethernet 2 x 10/100/1000/2500 Mbps Ethernet (Intel I226-LM)
    Other Ports
    Operating System
    Operating System Windows 10
    Power
    DC Input / Source Voltage 12-24V DC
    Power Comsumption 30W
    Operating Temperature
    Operating Temperature -10ºC to 50ºC
    Humidity Range 10% to 95% non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 1.5 kg
    Dimensions 198mm x 150mm x 41mm
    Enclosure
    Protection
    Material Steel / Plastic
    Mounting -


    Certification
    Certification CE, FCC Class B, BSMI, UKCA, VCCI
    More Information
    Manufacturer / BrandAdvantech
    CoolingFanless
    Display Size7"
    Touch typeResistive
