POC-W24C-ULT3

Customize POC-W24C-ULT3
Poc-W24C-ULT3

* Required Fields

Your Customization
POC-W24C-ULT3
POC-W24C-ULT3

0.00EUR

Summary
    SKU
    POC-W24C-ULT3
    Lead time 21-30 days

    0.00EUR

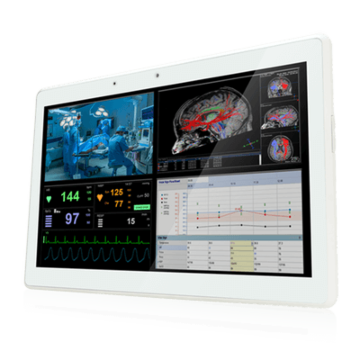

    ● 24” fanless FHD medical grade panel PC

    ● Intel® Core™ i5-6300U (Skylake) processor

    ● Certification: CE,FCC Class B Part18, IEC 60601-1:2005+AMD1:2012 ( Edition 3.1), IEC 60601-1-2: 2014 (Edition 4.0)

    ● PCAP touch allows multi-touch, multi-layer gloves and water on screen operation

    ● Anti-bacteria housing with IP65 front bezel and IP32 rear cover protection

    ● E-Window expansion slot

    System
    Processor 6th generation Intel® mobile ULT
    Core™ i7-6600U
    Core™ i5-6300U
    Celeron® 3855U
    CPU Performance
    Security Hardware
    Chipset SoC
    Storage 1 x SATA SSD
    1 x mSATA (E-Window)
    Storage Support
    Memory 2 x SO-DIMM DDR4 2400MHz up to 32 GB


    Audio 2 x 3W Speaker
    Display
    Screen Size 24" TFT LCD
    Screen Resolution 1920x1080
    Display Ratio 16 ::09
    Contrast Ratio
    Brightness 250 nits
    Viewing Angle -89~89(H); -89~89(V)
    Number of Colors
    Touch Screen
    Touchscreen Projected Capacitive (Multi-touch)
    Surface Hardness 6H
    I/O Ports
    USB 2.0 4x USB 2.0
    USB 3.0 4x USB 3.2
    Serial 1x RS-232/422/485
    Video 1 x HDMI
    Ethernet 2 x RJ45 GbE
    Other Ports 1 x RJ-11 for 1D/2D barcode reader
    Operating System
    Operating System Windows 10
    Power
    DC Input / Source Voltage 12-28V DC
    230V AC-DC Adapter (Medical , 120W)
    Power Management
    Expansion Slots

    1x mPCIE
    Multimedia
    Integrated Speakers 2 x 3W Speaker
    Camera 5M CMOS front-facing camera with auto-focus
    Operating Temperature
    Operating Temperature 0ºC to 40ºC
    Humidity Range 10% to 95% non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 7.5 kg
    Dimensions 594.6 x 379.6 x 60.68mm
    Enclosure
    Bezel
    Material ABS +PC plastic with anti-bacterial material, Aluminum
    Mounting Wall, Stand and Arm VESA 100/75
    Note *
    Peripherals & Devices
    Accessories
    Extra Features
    Certification
    Certification CE,FCC Class B Part18
    IEC 60601-1:2005+AMD1:2012 ( Edition 3.1)
    IEC 60601-1-2: 2014 (Edition 4.0)
    More Information
    CoolingFanless
