PICO51R
SKU
E38H51R111
Lead time 21-30 days

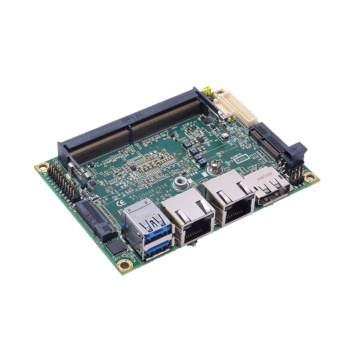

Pico-ITX SBC with 7th Gen Intel® Core™ i7/i5/i3 and Celeron® Processor, DisplayPort, LVDS and 2 GbE LAN
| Form Factor | |
| Form Factor | PICO ITX |
| System | |
| Processor | 7th gen Intel® Core™ i7/i5/i3 and Celeron® processor onboard |
| Integrated Graphics | Yes |
| Security Hardware | |
| Chipset | SoC |
| Storage | 1 x M.2 Key B (SATA, USB 2.0, PCIe x2 optional) 1 x SATA-600 |
| Storage Support | |
| Memory | 1 x 260-pin DDR4-2133 SO-DIMM, up to 16GB |
| Graphics | Intel HD graphics Integrated |
| I/O Ports | |
| USB 2.0 | 2 x USB 2.0 |
| USB 3.0 | 2 x USB 3.0 |
| Serial | 2 x RS-232/422/485 |
| Video | 1 x LVDS 1 x DisplayPort |
| Ethernet | 2 x 10/100/1000 Mbps (ntel® i219-LM & Intel® i211-AT) |
| Other Ports | DIO Mic-In/Line-out |
| Expansion | |
| Expansion Interface | 1 x M.2 Key E (PCIe x1, USB 2.0 in 22x30) |
| Operating System | |
| Operating System | Windows 10 |
| Power | |
| DC Input / Source Voltage | 2 x 2-pin connector +12 VDC-in only AT Auto Power On function supported |
| Operating Temperature | |
| Operating Temperature | Operating Temperature -20°C to 60°C |
| Humidity Range | 10% ~ 90%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 0.5kg |
| Dimensions | 100 x 72 mm |
| Certification | |
| Certification | CE |
