PhanTAM916CP
SKU
PhanTAM916CP
Lead time 21-30 days
0.00EUR

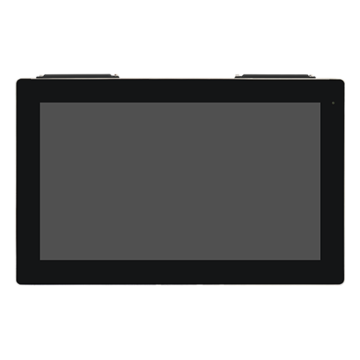

15.6” IP66 / IP69K True Flat and Slim Design Stainless Steel Panel PC
- 15.6" New Generation Stainless Steel Panel PC
- True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure
- (Grade 316 for Option)
- IP66/IP69K Rated with M12 Connectors
- Ultra Slim Front Frame Design
- Special Hygienic Bolts on Rear Case
- Waterproof Wireless Antenna Covers to Solve the Bend Damage and Easy to Clean
- Mounting: VESA Mount 100 x 100 / Swing ARM
| System | |
| Processor | 11th Gen. Intel Core i3/i5 Cpu |
| CPU Performance | |
| Security Hardware | TPM2.0 |
| Chipset | SoC |
| Storage | 1 x M-Key 2280 (PCIe x4) for SSD |
| Storage Support | |
| Memory | 2 x 260-pin DDR4-3200 SO-DIMM, up to 64GB |
| Display | |
| Screen Size | 15.6" TFT LCD |
| Screen Resolution | 1366x768 |
| Display Ratio | 16 ::09 |
| Contrast Ratio | 500::1 |
| Brightness | 400 nits |
| Viewing Angle | 170/160 |
| Number of Colors | 16.7M |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) |
| I/O Ports | |
| USB 2.0 | 1 x M12 8-pin for 2 x USB 2.0 with waterproof cover |
| USB 3.0 | - |
| Serial | 1 x M12 8-pin COM1, RS-232/422/485, default RS-232,
with waterproof cover |
| Video | - |
| Ethernet | 1 x M12 8-pin for LAN with waterproof cover |
| Other Ports | 2 x optional blank M12 connector with waterproof
cover for selecting two from the following options: 2 x USB 2.0 1 x USB 3.2 Gen.1 1 x HDMI 1 x LAN 1 x COM 1 x CAN |
| Operating System | |
| Operating System | Windows 10 |
| Power | |
| DC Input / Source Voltage | 9-36VDC |
| Power Management | |
| Expansion Slots | |
| 1 x Full size mPCIe/mSATA (mPCIe as default, select
by BIOS) 1 x NANO-SIM 1 x M.2 E-key 2230 (PCIe+USB) for optional WIFI/BT module |
|
| Multimedia | |
| Integrated Speakers | - |
| Operating Temperature | |
| Operating Temperature | 0ºC to 50ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 5.1 kg |
| Dimensions | 405 x 225 x 65 mm |
| Enclosure | |
| Bezel | IP66 /IP69K All size |
| Material | Stainless Steel |
| Mounting | VESA |
| Certification | |
| Certification | CE/FCC |
| Cooling | Fanless |
|---|---|
| Display Size | 15.6" |
| Touch type | Projected Capasitive (PCAP) |
