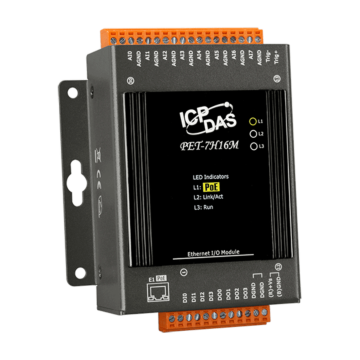

PET-7H16M
SKU
PET-7H16M
Lead time 14-22 days
Ethernet High Speed Data Acquisition Module with 8-ch AI, 4-ch DI, 4-ch DO and PoE
- 8 Single-ended Analog Input Channels (16-bit Resolution)
- 16-bit ADC with Built-in Anti-aliasing Filter
- Supports Real Sample and Hold
- Sample Rate up to 200 kS/s
- 4 x DO and 4 x DI Channels
- 1 x High-Speed Counter and 4 x Low-Speed Counters (32-bit)
- Continuous and N Data Sample Data Transmission Mode
- A/D Trigger Mode
- Software Trigger
- External Digital Signal Event Trigger
- Pre-Trigger/Post-Trigger/Delay-Trigger
- Analog Input Trigger
- External Clock Signal Synchronization A/D Acquisition
- Software Support
- Supported Operating Systems
Windows 7/8/10 and Linux - Software Compatibility
- Microsoft VC, C#, VB.NET SDK API and Demo
- NI LabVIEW Toolkit and Demo for Windows
- C/C++ library and Demo for Linux
- Supported Operating Systems
- Built-In 10/100BASE-T Auto-negotiating, Auto MDI/MDI-X Ethernet Port
- Option for External Power Supply or POE Supply
| I/O | Multi I/O |
|---|---|
| Manufacturer / Brand | ICP DAS |
| Connection | Modbus TCP |
