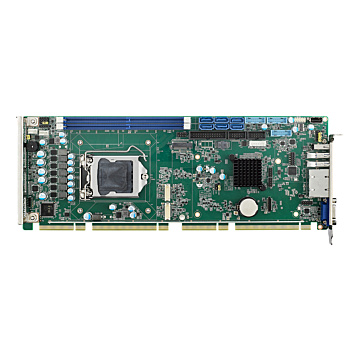

PCE-7132

SKU
PCE-7132G2-00A2
Lead time 21-30 days

LGA1200 10th Generation Intel® Xeon® W/Core™ i9/i7/i5/i3/Pentium® System Host Board with DDR4, SATA 3.0, USB 3.2, M.2, Dual GbE, and Triple Displays

  • Intel® Xeon® W Family/Core™ i9/i7/i5/i3 LGA1200 processor with W480E chipset
  • Up to 64 GB of dual-channel (non-ECC) DDR4 2666/2933 MHz
  • PCIe 3.0, M.2, USB 3.2, SATA 3.0, and SW Raid 0, 1, 5, 10
  • Supports VGA and 2 x DVI-D/DP display (with optional cable)
  • Supports out-of-band remote management with AMT
  • Supports Advantech’s LPC modules, SUSIAccess, and embedded software APIs
Form Factor
Form Factor PICMG1.3


System
Processor Intel® Xeon® W Family/Core™ i9/i7/i5/i3 LGA1200 processor
Security Hardware
Chipset Intel® W480E chipset
Storage 6 x SATA-600 (support RAID 0,1,5,10)
Memory 2 x DDR4-2933/2666 Mhz DIMM, up to 64GB
Graphics Chipset integrated with Intel HD Graphics
I/O Ports
USB 2.0 1 x USB 2.0
5 x USB2.0 (pin header)
USB 3.2 2 x USB3.2
6 x USB3.2 (pin hearder)


Serial 2 x COM pin header
Video 1 x VGA
1 x DVI-D (pin header)
1 x DP (pin header)
Ethernet 2 x 10/100/1000 Mbps Ethernet (Intel® i210-AT, i219-LM)
Other Ports GPIO
Expansion
Expansion Interface PICMG1.3 :
1 x PCIex16
1 x PCIex4
4 x PCI

M.2 Type M 2280
Operating System
Operating System Windows10 , Linux
Power
Power Input Standard 12V ATX power
Power Requirements
Operating Temperature
Operating Temperature Operating Temperature 0°C to 60°C
Humidity Range 10% ~ 95%, non-condensing
Dimensions / Weight
Weight (kg) 1.5kg
Dimensions 338mm x 122mm
Certification
Certification CE
More Information
Manufacturer / BrandAdvantech
SocketLGA 1200
Form FactorPICMG 1.3
