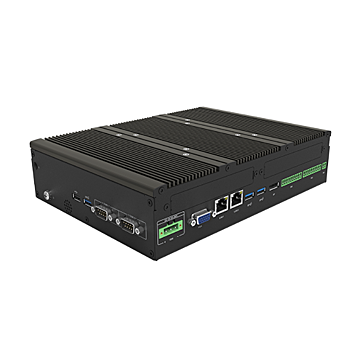

P2202E CDS PC Module
SKU
P2202E-ix
Lead time 21-30 days
0.00EUR
Intel® 12th Gen. Alder Lake-P U-Series Core™ Slim Embedded Computer with CDS Technology
- Onboard Intel® Alder Lake-P U-Series Core™ Processor
- 2 x DDR5 SO-DIMM Socket, Supports up to 4800MHz 64GB Memory
- Quad Independent Display (CDS / HDMI / DP / VGA)
- 1x M.2 Key E Type 2230 Socket for Intel CNVi / Wireless Module
- Supports Cincoze Patent CDS Technology (Patent No. M482908)
- CFM Technology for Power Ignition Sensing & PoE Function
- Wide Operating Temperature -40°C to 70°C
- EMC Emission / Immunity Standard for Industrial Environment : EN61000-6-4, EN61000-6-2
| System | |
| Processor | Onboard 12th Generation Intel® Alder Lake-P U-Series CPU: - Intel® Core™ i5-1245UE 10 Cores Up to 4.40 GHz, TDP 15W - Intel® Core™ i3-1215UE 6 Cores Up to 4.40 GHz, TDP 15W |
| CPU Performance | |
| Security Hardware | |
| Chipset | SoC |
| Storage | 2x 2.5” SATA3 HDD/SSD Bay Support RAID 0/1 |
| Memory | 2x DDR5 4800MHz SO-DIMM Socket Supports Un-buffered and non-ECC Type, Up to 64GB |
| Audio | Realtek ALC888 High Definition Audio |
| Graphics | Integrated Intel® Iris® Xe Graphics: Core™ i5-1245UE Integrated Intel® UHD Graphics: Core™ i3-1215UE |
| I/O Ports | |
| USB 2.0 | 1 x USB2.0 |
| USB 3.0 | 3x USB 3.2 |
| Serial | 4x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9 |
| Video | 1x Display Port (4096 x 2304) 1x HDMI 1x VGA 1x CDS Interface |
| Ethernet | 2x GbE LAN , RJ-45 |
| Other Ports | Mic-in/Line-out 16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block 1x Remote Power On/Off Connector |
| Expansion | |
| Expansion Interface | 1x PCIE / PCI expansion 1x 1x M.2 2230 E Key Socket for Wireless Module 2x CFM interface 2x Full-size Mini-PCIe Sockets 1x SIM Socket 4x Antenna hole 1x Convertible Display System (CDS) Interface |
| Operating System | |
| Operating System | Windows® 10 |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 9~48VDC |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C with W.T. SSD, Memory |
| Shock/Vibration | Shock: Operating, 50 Grms, Half-sine 11 ms Duration Vibration: Operating, 5 Grms, 5-500 Hz, 3 Axes |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 2.8 kg |
| Dimensions | 254.5 x 190 x 61 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Display module with CDS Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE, UKCA, FCC, ICES-003 Class A |
| Manufacturer / Brand | Cincoze |
|---|---|
| Cooling | Fanless |
| CPU Family | Alder Lake (12th Gen Core i3/i5i7/i9) |
| Operating Temp | Wide Temp -40..70C |
