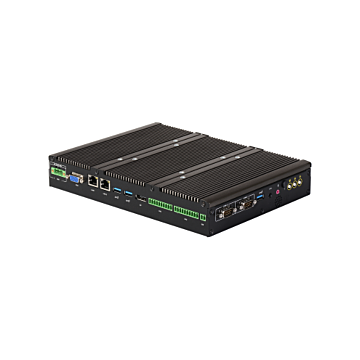

P2102 CDS PC Module, i5
SKU
P2102-i5
Lead time 21-30 days
0.00EUR
- Onboard 8th Generation Intel® Core™ U Series Processor
- 2x DDR4 SO-DIMM Socket, Supports Up to 2400MHz, 64GB
- Supports Triple Independent Display
- Integrated USB 3.2 Gen 2 supports up to 10Gbps
- M.2 E Key Socket for Wireless Module or Intel CRF Module
- Supports Ignition Sensing Function (IGN) (with optional CFM module)
- Supports 2x PoE+ Function (with optional CFM module)
- Supports CDS Technology for Convertible Panel PC
- Built-in Two 2W Internal Speakers
| System | |
| Processor | - Intel® Core™ i5-8365UE Quad Core Processor |
| CPU Performance | |
| Security Hardware | |
| Chipset | SoC |
| Storage | 2x 2.5” SATA3 HDD/SSD Bay |
| Memory | 2x DDR4 260-pin SO-DIMM socket, support up to 64 GB |
| Audio | Realtek ALC888-GR High Definition Audio |
| Graphics | Integrated Intel® UHD Graphics 620 Triple independent display with 1x VGA, 1x DP and 1x CDS interface |
| I/O Ports | |
| USB 2.0 | 2 x USB2.0 |
| USB 3.0 | 3x USB 3.2 |
| Serial | 4x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9 |
| Video | 1x Display Port (4096 x 2304) 1x VGA 1x CDS Interface |
| Ethernet | 2x GbE LAN , RJ-45 |
| Other Ports | Mic-in/Speaker out 16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block 1x Remote Power On/Off Connector |
| Expansion | |
| Expansion Interface | 1x 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module 2x CFM interface 2x Full-size Mini-PCIe Sockets 1x SIM Socket 1x Universal I/O Bracket 4x Antenna hole 1x Convertible Display System (CDS) Interface |
| Operating System | |
| Operating System | Windows® 10 |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 9~48VDC |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C with W.T. SSD, Memory |
| Shock/Vibration | Shock: Operating, 50 Grms, Half-sine 11 ms Duration Vibration: Operating, 5 Grms, 5-500 Hz, 3 Axes |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 2.2 kg |
| Dimensions | 254.5 x 190 x 41.5 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Display module with CDS Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE |
| Cooling | Fanless |
|---|---|
| CPU Family | Whiskey Lake (8th Gen Core i3/i5/7) Mobile |
| Operating Temp | Wide Temp -40..70C |
