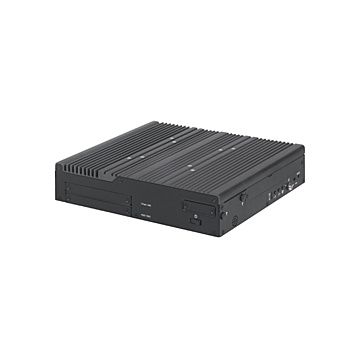

P2002 CDS PC Module, i5
SKU
P2002-i5
Lead time 21-30 days
6th Generation Intel® Core U Series (Skylake) Fanless Computer with CFM and CDS Interface
Details
* Onboard Intel® 6th Generation Core™ U Series Processor (15W)
* 2x DDR4 SO-DIMM Socket, Support Up to 32 GB
* Advanced Graphics Engine Support Triple Independent Display
* 2x 2.5” SATA HDD Bay, 1x mSATA and 1x CFast Socket
* 2x Full Size Mini-PCIe Socket
* Support CFM (Control Function Module) Technology
* Support 2x PoE+, Individual Port Offers Max. 25.5W (with optional CFM module)
* Support Ignition Sensing Function (IGN) (with optional CFM module)
* Rich I/O (2x GbE LAN, 6x COM, 5x USB, 16x Isolated DIO)
* Support Instant Reboot Technology
* Support CDS Technology for Convertible Panel PC
* Wide Operating Temperature (-25°C to 70°C)
* SuperCap integrated for Battery Maintenance-Free
* 2x DDR4 SO-DIMM Socket, Support Up to 32 GB
* Advanced Graphics Engine Support Triple Independent Display
* 2x 2.5” SATA HDD Bay, 1x mSATA and 1x CFast Socket
* 2x Full Size Mini-PCIe Socket
* Support CFM (Control Function Module) Technology
* Support 2x PoE+, Individual Port Offers Max. 25.5W (with optional CFM module)
* Support Ignition Sensing Function (IGN) (with optional CFM module)
* Rich I/O (2x GbE LAN, 6x COM, 5x USB, 16x Isolated DIO)
* Support Instant Reboot Technology
* Support CDS Technology for Convertible Panel PC
* Wide Operating Temperature (-25°C to 70°C)
* SuperCap integrated for Battery Maintenance-Free
Package includes
P2002 CDS PC Module
*Intel® Core™ i5-6300U processor
*Intel® Core™ i5-6300U processor
Specifications
| System | |
| Processor | Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz) Intel® Core™ i3-6100U processor (3M Cache, 2.30 Ghz) |
| CPU Performance | |
| Security Hardware | |
| Chipset | SoC |
| Storage | 2x 2.5” SATA HDD/SSD Bay 2x mSATA (shared by Mini-PCIe socket) 1x Cfast Socket (Gen3) |
| Memory | 2x DDR4 260-pin SO-DIMM socket, support up to 32 GB |
| Audio | Realtek ALC888-GR High Definition Audio |
| Graphics | Integrated Intel® HD Graphics 520 Triple independent display with 1x VGA, 1x DVI-D and 1x CDS interface |
| I/O Ports | |
| USB 2.0 | 1 x USB2.0 |
| USB 3.0 | 4x USB 3.0 |
| Serial | 6x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9 |
| Video | 1x DVI-D 1x VGA 1x CDS Interface |
| Ethernet | 2x GbE LAN , RJ-45 -with Optional CFM PoE Module: 2x PoE+ , IEEE 802.3at |
| Other Ports | Mic-in/Line-out 16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block 1x Remote Power On/Off Connector 1x Remote Reset Connector |
| Expansion | |
| Expansion Interface | 1x CFM PoE interface 1x CFM IGN interface 2x Full-size Mini-PCIe Sockets 1x SIM Socket 1x Universal I/O Bracket 4x Antenna hole |
| Operating System | |
| Operating System | Windows® 10, Windows® 7, Linux Kernel 4.4 |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 9~48VDC |
| Operating Temperature | |
| Operating Temperature | -25°C ~ +70°C with W.T. SSD, Memory |
| Shock/Vibration | Shock: Operating, 50 Grms, Half-sine 11 ms Duration Vibration: Operating, 5 Grms, 5-500 Hz, 3 Axes |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 3.2 kg |
| Dimensions | 254 x 220 x 54 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Display module with CDS Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE |
| Cooling | Fanless |
|---|
