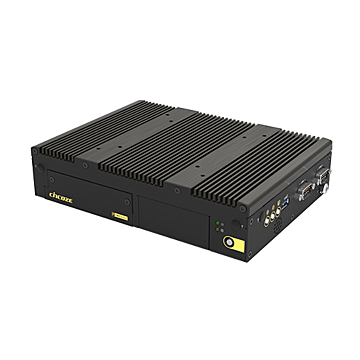

P1301 CDS PC Module

Customize P1301 CDS PC Module

* Required Fields

Your Customization
P1301 CDS PC Module
P1301 CDS PC Module

0.00EUR

Summary
    SKU
    P1301
    In Stock

    0.00EUR

    Intel® Alder Lake-N Platform, Slim Embedded Computer with CDS Technology

    • Onboard Intel® Alder Lake-N Processor N97 and Atom® x7425E Processor
    • 1 x DDR5 SO-DIMM Socket, Supports up to 4800MHz & 16GB Memory
    • 1 x M.2 Key E Type 2230 Socket for Wireless / Intel CNVi Module Expansion
    • 1 x M.2 Key B Type 3042 / 3052 Socket for 5G / Storage / Add-on Card Expansion
    • Supports Cincoze Patent CDS Technology (Patent No. M482908)
    • CFM Technology for Power Ignition Sensing & PoE Function
    • Wide Operating Temperature -40°C to 70°C
    • EMC Emission / Immunity Standard for Industrial Environment : EN61000-6-4, EN61000-6-2
    System
    Processor • Onboard Intel® Alder Lake-N Series Processor:
    - Intel® Processor N97 4 Cores Up to 3.60 GHz, TDP 12W
    - Intel Atom® x7425E 4 Cores Up to 3.40 GHz, TDP 12W
    Security Hardware
    Chipset SoC
    Storage 1x 2.5” SATA HDD/SSD Bay
    1 x M.2 SSD shared by M.2 Key B Type Socket
    Storage Support
    Memory 1x DDR5 SO-DIMM Socket, Support Up to 16GB
    Graphics Integrated Intel® UHD Graphics
    I/O Ports
    USB 2.0 1 x USB2.0
    USB 3.0 3x USB 3.2 (10Gbs)
    Serial 2x RS-232/422/485
    Video 1 x CDS
    1 x DisplayPort
    1 x VGA
    Ethernet 2x 2.5GbE LAN , RJ-45, Intel I225
    Other Ports Mic-in/Line-out
    Isolated DIO (4in/4out)

    Remote Power On/Off
    Remote Power LED
    Expansion
    Expansion Interface 1x CFM Interface (IGN module)
    1x CFM Interface (PoE module)

    1x M.2 Key E type 2230 Socket, Support Wireless
    1x M.2 Key B type 3042/3052 Socket, Support 5G/Storage/Add-on Card expansion
    1x SIM Socket
    Operating System
    Operating System Windows® 10
    Power
    DC Input / Source Voltage Power Input Voltage 9~48VDC
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 1.6 kg
    Dimensions 204 x 149 x 47 mm
    Environment & Reliability
    Power protection Reverse Power input protection

    Over Voltage, Over Current
    MTBF 306,338 h
    Operating Temperature -40°C ~ +70°C with W.T. SSD, 15W TDP CPU
    Humidity Range 10% ~ 95%, non-condensing
    Shock MIL-STD-810H
    Vibration MIL-STD-810H
    EMI • CISPR 32 Conducted & Radiated: Class A
    • EN/BS EN 50121-3-2 Conducted & Radiated: Class A
    • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
    • EN/BS EN 61000-3-3 Voltage fluctuations & flicker
    • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
    EMS • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
    • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 2 kV; Signal: 2 kV
    • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
    • EN/IEC 61000-4-6 CS: 10V
    (**Compliant with the standard when utilizing shielded cable.)
    • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
    • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
    Enclosure
    Material Aluminum / Steel
    Mounting CDS / Desk / Wall mounting / DIN-Rail/ VESA mount
    Design guide • Fanless Design
    • Jumper-less Design
    Peripherals & Devices
    Accessories Optional Modules
    Extra Features
    Certification
    Certification CE, UKCA, FCC, ICES-003 Class A
    • EN IEC 61000-6-4 / EN IEC 61000-6-2 (24VDC Input Only)


    More Information
    Manufacturer / BrandCincoze
    CoolingFanless
    CPU FamilyAlder Lake (12th Gen Atom X/Intel N)
    Operating TempWide Temp -40..70C
