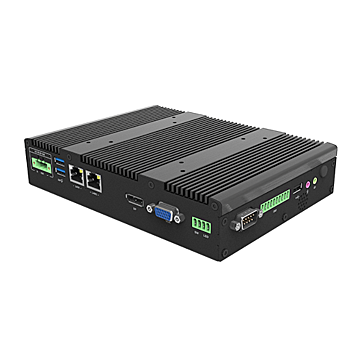

P1201 CDS PC Module
SKU
P1201-CDS-PC
In Stock
0.00EUR
Intel® Elkhart Lake Atom® x6000E Series Processor Slim Embedded Computer with CDS Technology
- Intel® Elkhart Lake Atom® x6425E/x6211E Processor
- 1x DDR4 SO-DIMM
- 1x M.2 Key E Type 2230 Socket for Intel® CNVi/Wireless Module
- CFM Technology for Power Ignition Sensing Function and PoE Function
| System | |
| Processor | Intel® Atom® x6425E Processor (1.5M Cache, up to 3.00
GHz, 12W) Intel® Atom® x6211E Processor (1.5M Cache, up to 3.00 GHz, 6W) |
| CPU Performance | |
| Security Hardware | |
| Chipset | SoC |
| Storage | 1x 2.5” SATA3 HDD/SSD Bay |
| Memory | 1x DDR4 SO-DIMM Socket, support up to 32 GB |
| Audio | Realtek® ALC888, High Definition Audio |
| Graphics | Integrated Intel® UHD Graphics Triple independent display with 1x VGA, 1x DP and 1x CDS interface |
| I/O Ports | |
| USB 2.0 | 1 x USB2.0 |
| USB 3.0 | 3x USB 3.2 Gen2 |
| Serial | 3x RS-232/422/485 With Auto Flow Control (Support 5V/12V), DB9 |
| Video | 1x Display Port (4096 x 2304) 1x VGA 1x CDS Interface |
| Ethernet | 2x GbE LAN , RJ-45 (Intel I210) |
| Other Ports | Mic-in/Speaker out 8x Isolated DIO (4x DI/4x DO), 10-Pin Terminal Block 1x Remote Power On/Off Connector |
| Expansion | |
| Expansion Interface | 1x 1x M.2 2230 E Key Socket for Wireless Module,
Supports Intel CNVi Module 2x CFM interface (IGN & PoE) 1x Full-size Mini-PCIe Sockets 1x SIM Socket 1x Convertible Display System (CDS) Interface |
| Operating System | |
| Operating System | Windows® 10 / LINUX |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 9~48VDC |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C with W.T. SSD, Memory |
| Shock/Vibration | Shock: Operating, 50 Grms Vibration: Operating, 5 Grms, 5-500 Hz, 3 Axes |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.6 kg |
| Dimensions | 204.5 x 149 x 41.5 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Display module with CDS Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE, UKCA, FCC, ICES-003 Class A EN61000-6-4, EN61000-6-2 |
| Cooling | Fanless |
|---|---|
| CPU Family | Elkhart Lake (Atom/Celeron/Pentium) |
| Operating Temp | Wide Temp -40..70C |
