P115-ADL-TRA
SKU
P115-ADL-TRA
Lead time 21-30 days
0.00EUR

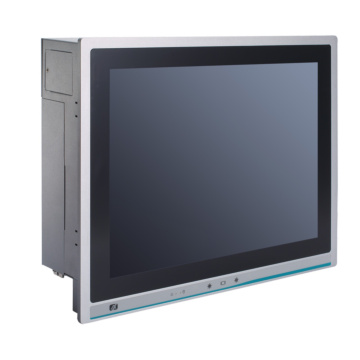

15" XGA TFT Expandable Industrial Touch Panel Computer with 12th Gen Intel® Core™ i7/i5/i3, Celeron® or Pentium® Processor and PCIe Slot
- 15” XGA LCD with 300nits of brightness
- 5-wire resistive touch
- Supports one 2.5” SATA HDD/SSD
- HDMI, DisplayPort and VGA output available for 2nd display
- 1 flexible I/O window
- Supports WLAN module and antenna (optional)
- Supports 2 USB 3.2, 4 USB 2.0, and 2 COM (up to 4 COM with flexible I/O)
- TPM 2.0 onboard
- Supports panel, VESA and wall mount kit
- 0°C to 50°C operating temperature
| System | |
| Processor | LGA1700 socket 13th/12th gen Intel® Core™ i7/i5/i3, Celeron® or Pentium® processor (Tj 100°C) TDP 35W |
| CPU Performance | |
| Security Hardware | TPM2.0 |
| Chipset | Intel H610 |
| Storage | 1 x SATA SSD |
| Memory | 2 x 260-pin DDR4-3200/2666/2400 SO-DIMM, up to 64GB |
| Display | |
| Screen Size | 15" TFT LCD |
| Screen Resolution | 1024x768 |
| Display Ratio | 4 ::3 |
| Contrast Ratio | |
| Brightness | 300 nits |
| Viewing Angle | -88~88(H); -88~88(V) |
| Number of Colors | |
| Touch Screen | |
| Touchscreen | 5-wire Resistive touch (single touch) |
| I/O Ports | |
| USB 2.0 | 4x USB 2.0 |
| USB 3.0 | 2x USB 3.2 Gen1 |
| Serial | 1x RS-232 1x RS-232/422/485 |
| Video | 1 x HDMI 1 x VGA 1 x DisplayPort |
| Ethernet | 1 x RJ45 2.5GbE 1 x RJ45 GbE |
| Other Ports | Audio Line-out x 1 1 x AC socket 1 x Remote power switch |
| Operating System | |
| Operating System | Windows 10 / Windows 11 |
| Power | |
| DC Input / Source Voltage | 230V AC |
| Power Management | |
| Expansion Slots | |
| 1 x M.2 Key E 2230 (PCIe/USB 2.0 signal) 1 x Full-size PCIe Mini Card slot (PCIe/USB signal + nano SIM slot) 1 x PCIe x16 slot 1 x Flexible I/O window (optional) |
|
| Multimedia | |
| Integrated Speakers | - |
| Operating Temperature | |
| Operating Temperature | 0ºC to 50ºC |
| Humidity Range | 10% to 90% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | CPU FAN |
| Dimensions / Weight | |
| Weight (kg) | 6,3 kg |
| Dimensions | 378.3 x 88.8 x 310.3 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum |
| Mounting | Panel , VESA |
| Note * | |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE, EN 61000-6-2, EN 61000-6-4 UKCA FCC Class A |
| Manufacturer / Brand | Axiomtek |
|---|---|
| Cooling | CPU tuuletin |
| Display Size | 15" |
| Touch type | Resistive |
| CPU Family | Alder Lake (12th Gen Core i3/i5i7/i9) |
