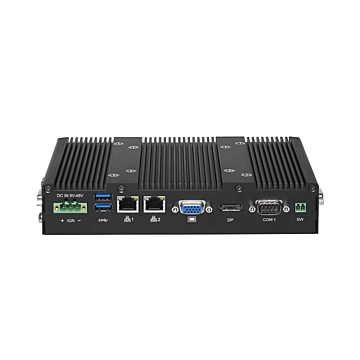

P1101 CDS PC Module

Customize P1101 CDS PC Module

* Required Fields

Your Customization
P1101 CDS PC Module
P1101 CDS PC Module

0.00EUR

Summary
    SKU
    P1101
    Lead time 21-30 days

    0.00EUR

    • Onboard Intel® Atom® / Pentium® Processor
    • 1x DDR3L SO-DIMM max. up to 8GB
    • Triple Independent Display (1x CDS, 1x VGA, 1x DisplayPort)
    • 1x 2.5” SATA Drive Bay, 1x mSATA Socket
    • Rich I/O (2x LAN, 4x USB, 4x COM, 8x Isolated DIO)
    • 2x Full Size Mini-PCIe Expansion Socket
    • Supports 2x PoE+ Function (with optional CFM module)
    • Supports Ignition Sensing Function (IGN) (with optional CFM module)
    • Supports CDS Technology for Convertible Panel PC
    • Built-in Two 2W Internal Speakers


    System
    Processor

    Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 Ghz

    Intel Pentium N4200 Quad Core Processor

    CPU Performance
    Chipset SoC
    Storage 2 x 2.5” SATA3 bay
    2 x mSATA
    Storage Support
    Memory 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket
    Memory (RAM)
    I/O Ports
    USB 2.0 -
    USB 3.0 4x USB 3.0
    Serial 4x RS-232/422/485
    Video 1 x VGA
    1 x DisplayPort
    1 x CDS interface
    Ethernet 2 x RJ45 GbE (PoE+ with optional )
    Other Ports 1x Audio Line-out,
    1x Mic-in
    8x Isolated DIO
    Operating System
    Operating System Windows 10 Pro, Windows 10 IoT, Linux
    Power
    DC Input / Source Voltage 9-48V DC
    230V AC-DC adapter (Optional)
    Power Management
    Expansion Slots
    Expansion 1 x CFM POE interface
    1 x CFM IGN interface
    1 x SIM card slot
    2 x mPCIE

    Multimedia
    Integrated Speakers
    Operating Temperature
    Operating Temperature -40ºC to 70ºC with wide-temp peripherals
    Humidity Range 10% to 95% non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 1.5 kg
    Dimensions 204.5 x 149 x 41.5 mm
    Enclosure
    Bezel
    Material Aluminum
    Mounting Wall-mount, VESA
    Note *
    Peripherals & Devices
    Accessories
    Extra Features
    Certification
    Certification CE / FCC
    More Information
    CoolingFanless
    CPU FamilyApollo Lake (Celeron/Pentium)
    Operating TempWide Temp -40..70C
