NWPanel 701
SKU
NWPanel-701-x
In Stock
614.95EUR 490.00EUR

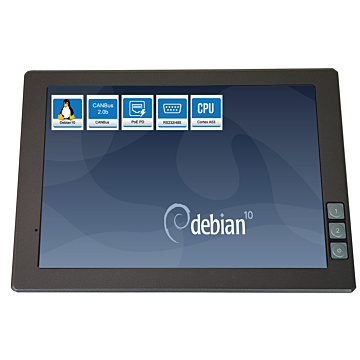

7" Touch Panel PC with i.MX8 CPU
- i.MX 8M Mini Cortex-A53 1.6Ghz
- 2GB RAM + 16GB Flash ROM
- 1280*800 res, 800nits High-Brightness LCD
- 2x LAN, USB, COM, CANbus2.0B, GPIO
- WLAN & BT5.0, Optional 4G LTE
- Linux Debian10 OS
System | |
Processor | NXP i.MX 8M Mini Cortex-A53 1.6Ghz Quod-core |
Memory | 2GB RAM / 16GB Flash ROM 4GB RAM / 64GB Flash ROM (Optional) |
GPU | 3D GPU (1x shader,OpenGL ES2.0), 2D GPU |
Storage | Micro SD Card Slot (max 512GB capacity) |
Expansion | Wifi & BT5.0 4G LTE (optional) SIM slot Micro SD Card Slot |
Display | |
Screen Size | 7" TFT LCD |
Screen Resolution | 1280x800 |
Display Ratio | 16::9 |
Contrast Ratio | - |
Brightness | 800 nits |
Viewing Angle | 170 / 170 |
Number of Colors | |
Touch Screen | |
Touchscreen | PCAP (Multitouch) |
I/O Ports | |
USB 2.0 | 2x USB2.0 (host) |
USB C-type | 1 x USB C-type |
Serial | 2 x RS-232 1 x RS-485 |
Video | - |
Ethernet | 1 x 10/100/1000 Mbps Ethernet (with PoE input), RJ-45 1 x 10/100 Mbps Ethernet, RJ-45 |
Other Ports | 3.5mm earphone jack Speaker |
Operating System | |
Operating System | Debian Linux 10 Android 9 (optional) |
Power | |
DC Input / Source Voltage | 9-36V DC PoE power input 230V AC-DC adapter (optional) |
Power Comsumption | <13W power consumption |
Operating Temperature | |
Operating Temperature | -10ºC to 50ºC |
Humidity Range | 10% to 95% non-condensing |
Cooling System / Thermal Solution | |
Thermal Solution | Passive - Fanless |
Dimensions / Weight | |
Weight (kg) | 800g |
Dimensions | 206mm x 144mm x 31mm |
Enclosure | |
Protection | ISO 7637-2 |
Material | Aluminium alloy / Plastic |
Mounting | Panel, VESA75 |
Certification | |
Certification | CE |
![](https://www.ipcmax.com/media/catalog/product/n/w/nwpanel701_big1_1.jpg)
![](https://www.ipcmax.com/media/catalog/product/n/w/nwpanel-701_front1.jpg)
![](https://www.ipcmax.com/media/catalog/product/n/w/nwpanel-701_backleft_1.jpg)
Cooling | Fanless |
---|---|
Display Size | 7" |
Touch type | Projected Capasitive (PCAP) |
