Nvidia Quadro Embedded RTX3000 MXM, 4x DisplayPort
SKU
PRN00002+CB-DP01
Lead time 21-30 days

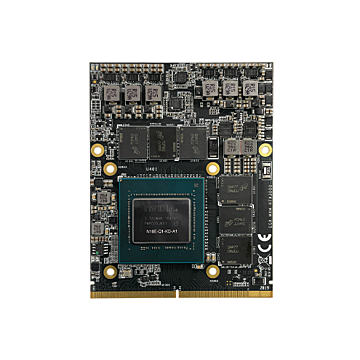

Nvidia Quadro Embedded RTX3000 MXM Kit with Heatsink and carrier board
- NVIDIA® Quadro® RTX3000 Embedded Graphics
- Standard MXM 3.1 Type B Form Factor (82 x 105 mm)
- 1920 NVIDIA® CUDA® Cores, 30 RT cores, and 240 Tensor Cores
- 5.3 TFLOPS Peak FP32 Performance
- 6GB GDDR6 Memory, 192-bit
| GPU | |
| Memory | 6GB GDDR6 memory, 192-bit (Bandwidth: 336 GB/s) |
| CUDA Cores | 1920 CUDA® cores, 5.3 TFLOPS Peak FP32 performance |
| Tensor Cores | 240 Tensor Cores |
| Compute API | CUDA Toolkit 8.0 and above, CUDA Compute version 6.1 and above, OpenCL™ 1.2 |
| Graphics API | DirectX® 12, OpenGL 4.6, Vulkan 1.0 API |
| Display Outputs | 4x DisplayPort 1.4b digital video outputs, 4K at 120Hz or 8K at 60Hz |
| Interface | MXM 3.1, PCI Express Gen3 x16 support |
| Dimensions | 82 (W) x 105 (D) x 4.8 (H) mm |
| Form Factor | Standard MXM 3.1 Type B |
| Power Consumption | 80W |
| OS Support | Windows 10, Linux support by project |
