NSM-206PFCS
SKU
NSM-206PFCS
Lead time 14-22 days

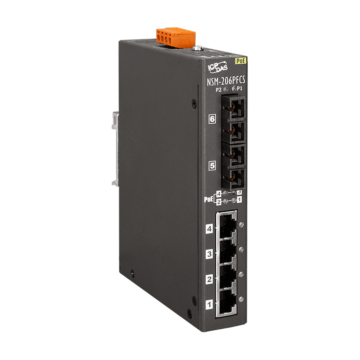

Single-mode, SC Connector, 4-port 10/100 Mbps PoE(PSE) with 2 Fiber ports Switch
• 4 PoE/PoE+ PSE capable ports, fully compliant to IEEE 802.3af/at
• Up to 30 watts per PoE port at 24~57 VDC Power Input
• Supports operating temperatures from -40 °C ~ +75 °C
• Full duplex IEEE 802.3x and half duplex backpressure flow control
• Power input 12~57 VDC wide range redundant power inputs
• Broadcast Storm protection
• Automatic MDI/MDI-X crossover for plug-and-play
• Single-mode, SC Connector Fiber supports
• DIN-Rail Mounting, Wall Mounting (optional)
| Managed Eth | Un-Managed |
|---|---|
| Fiber Option | Single-mode |
| PoE Option | PoE Ports |
