NAVPIXEL NPD2118
SKU
NPD2118-ETAW
Lead time 21-30 days

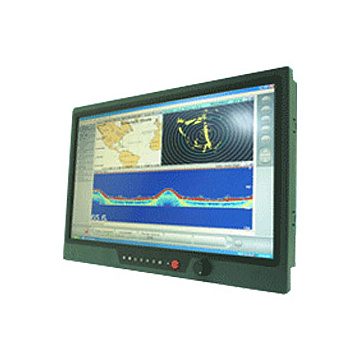

21.5" IP65 Sunlight Readable PCT Multi-Touch Marine Display
- 21.5" sunlight readable, high brightness (1,600 nits) LCD
- Advanced Optical Bonding (AOT)
- High shock & vibration resistance
- Projected capacitive multi-touch support
- IP65 waterproof (front)
- Picture-In-Picture, 3 stages (Child, split and wide screen)
- BV Rule IACES‐E10 certified; IEC 60945 compliant
| Display | |
| Screen Size | 21.5" TFT LCD |
| Screen Resolution | 1920x1080 |
| Display Ratio | 16 ::9 |
| Contrast Ratio | 1100 ::1 |
| Brightness | 1600 nits |
| Viewing Angle | 170°(H),160°(V) |
| Number of Colors | 16.7M |
| Touch Screen | |
| Touchscreen | Protective Glass / 5-wire Resistive/PCAP |
| I/O Ports | |
| Video | 2x VGA 2x DVI-D 3x Composite |
| Other Ports | USB &RS232 Touch |
| Operating System | |
| Operating System | |
| Power | |
| DC Input / Source Voltage | 9-36V DC |
| Multimedia | |
| Operating Temperature | |
| Operating Temperature | -10ºC to 50ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 6.0 kg |
| Dimensions | 557 x 383 x 57mm |
| Enclosure | |
| Bezel | Rugged SPCC Chassis |
| Material | |
| Mounting | Panel VESA |
| Protection | IP65 Front |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE / FCC |
| Display Size | 21.5" |
|---|---|
| Signal input | VGA, DVI-D, Composite Video (RCA) |
