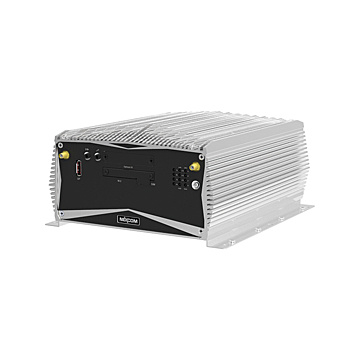

NISE 3800P2E
SKU
NISE-3800P2E
Lead time 21-30 days
6th generation Intel Core i7/i5/i3 fanless system with one PCI and one PCIe x4 expansion
Details
* Support 6th generation Intel® Core™ i7/i5/i3 LGA socket type embedded processor
Intel® Q170 PCH
* Support 1 x 2.5" SATA HDD
* 1 x DVI-D, 1 x DP, and 1 x HDMI with independent display support
* Three Intel® GbE LAN ports; support WoL, teaming and PXE
* 1 x External M.2 socket and 1 x SIM card socket
* 4 x USB 3.0, 2 x USB 2.0, 2 x RS232/422/485 with auto flow control
* 2 x Internal mini-PCIe socket support optional Wi-Fi/3.5G/mSATA/Fieldbus
* Support +9V to 30VDC input; ATX power mode
* 2 x PCI or PCIe x4 expansions
Intel® Q170 PCH
* Support 1 x 2.5" SATA HDD
* 1 x DVI-D, 1 x DP, and 1 x HDMI with independent display support
* Three Intel® GbE LAN ports; support WoL, teaming and PXE
* 1 x External M.2 socket and 1 x SIM card socket
* 4 x USB 3.0, 2 x USB 2.0, 2 x RS232/422/485 with auto flow control
* 2 x Internal mini-PCIe socket support optional Wi-Fi/3.5G/mSATA/Fieldbus
* Support +9V to 30VDC input; ATX power mode
* 2 x PCI or PCIe x4 expansions
Specifications
| System | |
| Processor | -Core™ i7-6700TE, Quad Core, 2.4GHz, 8M Cache -Core™ i5-6500TE, Quad Core, 2.3GHz, 6M Cache -Core™ i3-6100TE, Dual Core, 2.7GHz, 4M Cache |
| CPU Performance | |
| Security Hardware | |
| Chipset | Intel Q170 PCH |
| Storage | 1 x M.2 (SATA 3.0) 1 x mSATA (SATA 3 0) 1 x 2.5" HDD (SATA 3.0 |
| Storage Support | |
| Memory | 2x DDR4 SO-DIMM socket, supports up to 16GB DDR4, non-ecc |
| Graphics | 1 x DVI-D 1 x HDMI 1 x DisplayPort |
| I/O Ports | |
| USB 2.0 | 2 x USB 2.0 |
| USB 3.0 | 4 x USB 3.0 |
| Serial | 2 x RS-232/422/485 |
| Video | 1 x DVI-D port 1 x DVI-I port 1 x HDMI |
| Ethernet | 3 x Intel® I210IT GbE LAN ports; support WoL, teaming and PXE |
| Other Ports | 1x Line-out and 1x Mic-in |
| Expansion | |
| Expansion Interface | 1x PCIex4 Expansion Slot - Add-on card length: 169mm max. 1x PCI Slot - Add-on card length: 240mm max. - Power consumption: 10W/slot max. 2x miniPCIe socket 1x SIM Card holder |
| Operating System | |
| Operating System | Windows 7/ Windows 10 |
| Power | |
| DC Input / Source Voltage | 9-30V DC Input in system 230V AC adapter |
| Operating Temperature | |
| Operating Temperature | Operating Temperature -5°C to 50°C, with Wide-Temp SSD |
| Humidity Range | 10% ~ 90%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 4.0kg |
| Dimensions | 215 mm(W) x 272mm (D) x 114mm (H) |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk/Wall mounting |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE |
