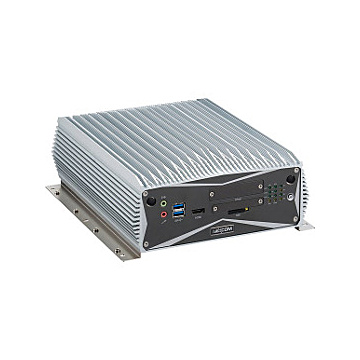

NISE 3700E
SKU
NISE-3700E
Lead time 21-30 days
4th Generation Intel® Core i7/i5/i3 LGA Fanless System with one PCIEx4 Expansion
Details
* Support 4th generation Intel® Core™ i7/i5/i3 LGA Socket Type Embedded Processor
* Intel® Q87 PCH
* Support 1 x 2.5" SATA HDD
* 1 x DVI-I, 1 xDVI-D, and 1x HDMI with Independent Display Support
* Three Intel® GbE LAN ports; Support WoL, Teaming and PXE
* 4 x USB 3.0, 4 x USB 2.0, 1 x RS232 and 2 x RS232/422/485 with auto flow control
* 2 x internal Mini-PCIe socket support optional Wi-Fi/3.5G/mSATA/Fieldbus
* 1 x External CFast socket and 1x SIM card socket
* Support +9V to 30VDC input; ATX power mode
* 1 x PCIe x4 expansion
* Intel® Q87 PCH
* Support 1 x 2.5" SATA HDD
* 1 x DVI-I, 1 xDVI-D, and 1x HDMI with Independent Display Support
* Three Intel® GbE LAN ports; Support WoL, Teaming and PXE
* 4 x USB 3.0, 4 x USB 2.0, 1 x RS232 and 2 x RS232/422/485 with auto flow control
* 2 x internal Mini-PCIe socket support optional Wi-Fi/3.5G/mSATA/Fieldbus
* 1 x External CFast socket and 1x SIM card socket
* Support +9V to 30VDC input; ATX power mode
* 1 x PCIe x4 expansion
Package includes
NISE 3700E
*Core i5-4590T, 4-Core, 2.0GHz, 6M Cache
*Core i5-4590T, 4-Core, 2.0GHz, 6M Cache
Specifications
| System | |
| Processor | Core i5-4590T, 4-Core, 2.0GHz, 6M Cache |
| CPU Performance | |
| Security Hardware | |
| Chipset | Intel Q87 PCH |
| Storage | 1 x 2.5" HDD (SATA 3.0) 1 x CFast (SATA 3.0) 1 x mSATA (internal Mini-PCIe socket) |
| Storage Support | |
| Memory | 2x DDR3 SO-DIMM socket, supports up to 8GB DDR3, non-ecc |
| Graphics | 1 x DVI-D port 1 x DVI-I port 1 x HDMI |
| I/O Ports | |
| USB 2.0 | 4 x USB 2.0 |
| USB 3.0 | 2 x USB 3.0 |
| Serial | 2 x RS-232/422/485 1 x RS-232 |
| Video | 1 x DVI-D port 1 x DVI-I port 1 x HDMI |
| Ethernet | 3 x Intel® I210IT GbE LAN Ports |
| Other Ports | 1x Line-out and 1x Mic-in |
| Expansion | |
| Expansion Interface | 1 x PCIe x4 2 x PCI Express Mini Card 1 x External SIM card holder |
| Operating System | |
| Operating System | Windows 7 |
| Power | |
| DC Input / Source Voltage | 9-30V DC Input in system 230V AC adapter |
| Operating Temperature | |
| Operating Temperature | Operating Temperature -5°C to 50°C, with Wide-Temp SSD |
| Humidity Range | 10% ~ 90%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 4.0kg |
| Dimensions | 215mm (W) x 272mm (D) x 93mm (H) |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk/Wall mounting |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE |
