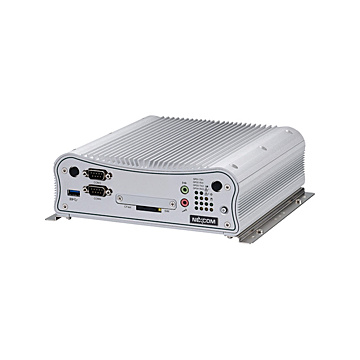

NISE 2400-J1900

Details

* Onboard Intel® Celeron® Processor J1900 Quad Core, 2.0GHz
* Dual independent display from DVI-I and HDMI
* 2 x Intel® I210IT GbE LAN ports support WoL, Teaming and PXE
* 4 x USB 2.0 & 1 x USB 3.0
* 2 x RS232 & 2 x RS232/RS422/RS485 with auto flow control
* 2 x Mini-PCIe socket for optional mSATA/Wi-Fi/4G LTE/3.5G/Fieldbus modules
* Support -5 to 55 degree Celsius extended operating temperature
* Support 9-30V DC input

Specifications

System
Processor	Intel® Celeron® Processor J1900 Quad Core, 2.0GHz
CPU Performance
Security Hardware
Chipset	SoC
Storage	1 x CFast (SATA 3.0) 1 x 2.5" HDD (SATA 2.0)
Storage Support
Memory	2x DDR3L SO-DIMM socket, supports up to 8GB
Graphics	1 x DVI-I 1 x HDMI
I/O Ports
USB 2.0	4 x USB 2.0
USB 3.0	1 x USB 3.0
Serial	2 x RS-232/422/485 2 x RS-232
Video	1 x DVI-I 1 x HDMI
Ethernet	2 x Intel® I210IT GbE LAN ports, support WOL, Teaming and PXE
Other Ports	1 x remote power switch 1 x Audio (MIC-in/Line-out)
Expansion
Expansion Interface	2 x Mini-PCIe socket for optional Wi-Fi/3.5G/Hilscher automation modules 1 x SIM Card holder
Operating System
Operating System	Win7/Win10, Linux
Power
DC Input / Source Voltage	9-30V DC Input in system (optional 230V AC adapter)
Operating Temperature
Operating Temperature	Operating Temperature -5°C to 55°C, with Wide-Temp SSD
Humidity Range	10% ~ 90%, non-condensing
Cooling System / Thermal Solution
Thermal Solution	Passive - Fanless
Dimensions / Weight
Weight (kg)
Dimensions	191mm (W) x 200mm (D) x 60mm (H) without wall-mount bracket
Enclosure
Bezel
Material	Aluminum / Steel
Mounting	Desk/Wall mounting
Peripherals & Devices
Accessories
Extra Features
Certification
Certification	CE
