NISE 106-N3160

SKU

NISE 106-N3160

Lead time 14-22 days

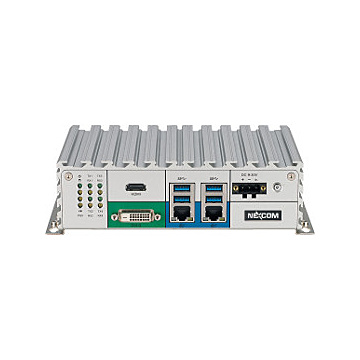

Intel® Celeron® Processor N3160 Quad Core, 1.6GHz fanless system

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Onboard Intel® Celeron® Processor N3160 Quad Core, 1.6GHz
3 x display output: 1 x HDMI display + 1 x DVI-D + 1 x DP port
2 x Intel® I210AT GbE LAN ports; Support WoL, Teaming and PXE
4 x USB 3.0
2 x DB9 for RS232/422/485, 2 x DB9 for RS232
1 x optional interface for optional Wi-Fi/3.5G/LTE modules
Support -5°C~55°C extended operating temperature
Support 9~30V DC input

Package includes

NISE 106-N3160
*Intel N3160 cpu
*4GB RAM

Specifications

System
Processor	Intel Celeron Quad Core Processor N3160
CPU Performance
Security Hardware
Chipset	SoC
Storage	1 x 2.5" SATA HDD 1 x External CFast socket
Storage Support
Memory	1 x DDR3L SO-DIMM Socket, Support DDR3L 1600/1333 4GB RAM max., un-buffered and non-ECC
Graphics	1 x HDMI, 1x DVI-D, 1 x DisplayPort
I/O Ports
USB 2.0
USB 3.0	4 x USB 3.0
Serial	2 x RS-232/422/485 2 x RS-232
Video	1 x DVI-D 1 x HDMI 1 x DisplayPort
Ethernet	2 x Intel® I210AT GbE LAN ports
Other Ports	1 x remote power switch 1 x Audio (MIC-in/Line-out)
Expansion
Expansion Interface	1 x Mini-PCIe socket for optional Wi-Fi/3.5G/Hilscher automation modules 1 x SIM Card holder
Operating System
Operating System	Win7/Win10, Linux
Power
DC Input / Source Voltage	9-30VDC input
Operating Temperature
Operating Temperature	Operating Temperature -5°C to 55°C, with Wide-Temp SSD
Humidity Range	10% ~ 90%, non-condensing
Cooling System / Thermal Solution
Thermal Solution	Passive - Fanless
Dimensions / Weight
Weight (kg)
Dimensions	185mm (W) x 131mm (D) x 54mm (H)
Enclosure
Bezel
Material	Aluminum / Steel
Mounting	Desk/Wall mounting
Peripherals & Devices
Accessories
Extra Features
Certification
Certification	CE
