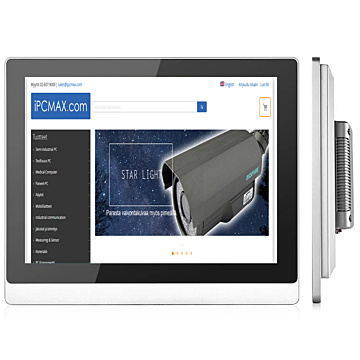

Niceview 15" Industrial Touchscreen
SKU
tft150tc
Lead time 21-30 days
464.35EUR 370.00EUR
- 15" Capacitive touch screen for industrial applications.
- HDMI, DVI and VGA inputs. USB for touch.
- Aluminium frame. IP65 protected front panel.
- VESA-mounting
- 350nits
- Native resolution 1024x768 with 4:3 aspect ratio.
- Operating temp -10C - +60C
- Operating voltage DC12V
- 15" Capacitive touch screen for professional and industrial applications:
- Laser cutting machines
- CNC-machines
- Machine manufacturing
- Digital Signage
- Self-service monitor
- Point of Sale monitor
- Etc.
- This monitor easily replace models like ELO 1517L and ELO 1523L.
- Front panel smooth and IP65 protected.
- Multiple inputs HDMI, DVI-D ja VGA.
- Native resolution 1024x768 pixels.
- Aspect ratio 4:3.
- Wide 160 degree viewing angles.
- Brightness 350 nits.
- LED-backlight.
- Touchscreen connection with USB (monitor side it is RJ45, USB-RJ45 cable included in package).
- VESA-standard mounting solutions.
- OSD-menu for settings, buttons on back panel.
- Fanless design.
- Operating temp -10C - +60C.
- Operating voltage DC12V.
- Dimensions: 350,5 x 296,4 x 59,7mm.
Package includes
- Touchscreen
- AC Power adapter
- USB-RJ45 cabel for touchscreen
- NOTE! Mounting stand purchased separately.
Spesifications
| Screen size | 15 inch |
| Resolution | 1024*768 |
| Proportion | 4:3 square screen |
| Gray-scale response time | 5ms |
| Panel Type Industrial | Control A style TFT |
| Point distance | 0.264mm |
| Contrast | 800:1 |
| Backlight type | LED, use length≥50000h |
| Display color | 16.7M |
| Visual angle | 160/160 |
| Brightness | 300cd/m2 |
| Touch-type | Capacitive (P-CAP) |
| Number of touches | ≥ 50 million times |
| Power Supply | 4A External Power Adapter |
| Power Performance | 100-240V, 50-60HZ |
| Input voltage | DC12V |
| Anti-static | Contact 4KV-air 8KV |
| Power | ≤48W |
| Anti-vibration | GB2423 standard |
| Anti-interference | EMC|EMI anti-electromagnetic interference |
| Dustproof and waterproof | Front panel IP65 dustproof and waterproof |
| Housing Material | Black/Silver, Aluminum Alloy |
| Installation method | Embedded, desktop, wall-mounted, cantilever |
| Ambient temperature | <80%, non-condensable |
| Working temperature | -10°C～60°C (customizable -30°C～80°C) |
| Signal Interface | DVI, HDMI, VGA |
| Power connector | DC with ring attachment |
| Touch interface | USB |
| Other interfaces | Audio input and output |
| Display Size | 15" |
|---|---|
| Touch type | Projected Capasitive (PCAP) |
| Signal input | VGA, DVI-D, HDMI |
