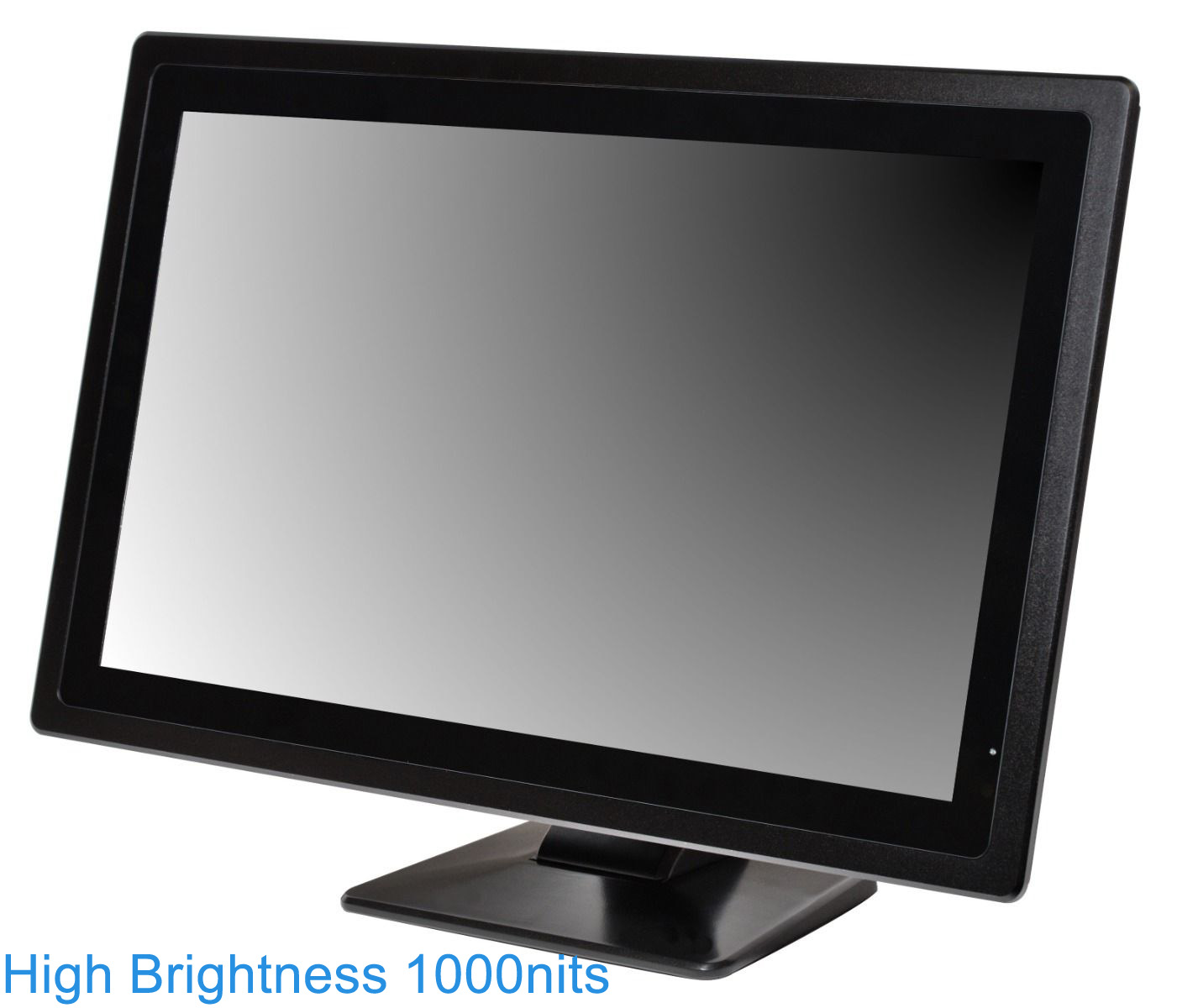

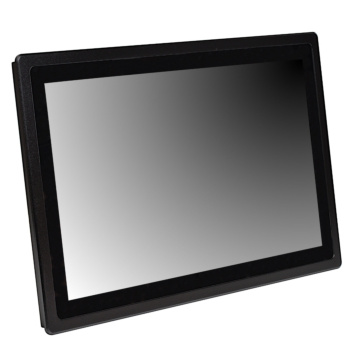

Niceview 21.5" FULL-HD Sun Readable TFT Industrial Touch Monitor
SKU
tft156hb
In Stock
715.35EUR 570.00EUR
21.5" FULL-HD Sunlight Readable TFT LCD touch monitor. Super bright 1000 nits backlight. Autodim function. IP65 protected front panel. Picture ratio 16:9. PCAP 10-point multitouchscreen USB. Strong metal frame. VESA 75/100. Supports panel and desktop mounting. Operating temp 0C - +50C. Easy to clean. HDMI, VGA, RCA (composite video) and audio I/O.
Package includes
- Monitor
- AC Power adapter
- Panel mount kit
- HDMI-cabel
- VGA-cable
- USB-cable for touchscreen
- RCA-cable for composite video input
- 3.5mm - RCA Audio input cable
NOTE! Desktop stand must be purchased separately!
| Display | |
| Screen size | 21.5 inch |
| Resolution | 1920*1080 |
| Proportion | 16:9 |
| Gray-scale response time | 5ms |
| Panel Type Industrial | Control A style TFT |
| Point distance | 0.264mm |
| Contrast | 1000:1 |
| Backlight type | LED, use length≥50000h |
| Display color | 16.7M |
| Visual angle | 178/178° |
| Brightness | 1000 nits |
| Touch Screen | |
| Touch-type | 10-points capacitive |
| Number of touches | ≥ 50 million times |
| I/O ports | |
| Signal Interface | HDMI, VGA, RCA |
| Power connector | DC with ring attachment |
| Touch interface | USB |
| Other interfaces | Audio 3.5mm ear jack |
| Audio | 2 speakers |
| Power | |
| Power Supply | 4A External Power Adapter |
| Power Performance | 100-240V, 50-60HZ |
| Input voltage | 12-24V |
| Anti-static | Contact 4KV-air 8KV |
| Power | ≤37W |
| Dimensions / Weight | |
| Dimensions | 556 x 345 x 49mm |
| Enclosure | |
| Anti-vibration | |
| Anti-interference | EMC|EMI anti-electromagnetic interference |
| Dustproof and waterproof | Front IP65 dustproof and waterproof |
| Housing Material | Black, metal alloy |
| Installation method | Embedded, desktop, wall-mounted, VESA 75, VESA 100, panel mount, open frame. |
| Operating temp | |
| Ambient temperature | <80%, non-condensable |
| Working temperature | 0°C～50° |
| Weight | 6kg |
| Display Size | 15.6" |
|---|---|
| Touch type | Projected Capasitive (PCAP) |
| Signal input | VGA, HDMI, Composite Video (RCA) |
