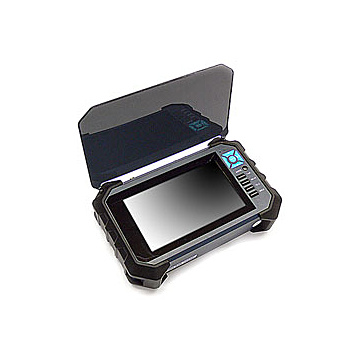

Niceview 7" HD Tester
SKU
nchdtester
Lead time 21-30 days
505.04EUR 402.42EUR
7" HD TFT tester for video surveillance installers. HD-SDI, BNC, HDMI, VGA, RS-485 and power connectors. DC12V, built-in battery. Power adapter and protective carry case included.
Details
*Professional testing tool for CCTV installer.
*Sharp 7" TFT monitor with HD support, easy to adjust camera image on the field.
*Inputs: HD-SDI (BNC). HDMI, VGA, Video (BNC).
*Outputs: HD-SDI (BNC), Video (BNC), RS-485, virta DC12V/1000mA.
*Supports max FULL-HD 1920x1080 resolution.
*Supports RS-485.
*DC12V / 1000mA connector to power up and test camera.
*Built-in LiPo battery 7.4V/5200mAh.
*Sharp 7" TFT monitor with HD support, easy to adjust camera image on the field.
*Inputs: HD-SDI (BNC). HDMI, VGA, Video (BNC).
*Outputs: HD-SDI (BNC), Video (BNC), RS-485, virta DC12V/1000mA.
*Supports max FULL-HD 1920x1080 resolution.
*Supports RS-485.
*DC12V / 1000mA connector to power up and test camera.
*Built-in LiPo battery 7.4V/5200mAh.
Package includes
1x Niceview 7" HD Tester
1x AC power adapter
1x BNC video cable
1x DC power cable
1x Carry bag
1x Carry strips
1x AC power adapter
1x BNC video cable
1x DC power cable
1x Carry bag
1x Carry strips
Specifications
| LCD | Display resolution | 1024 x 600 | |
| Active Area | 153.6 (W) x 90.0(H)mm | ||
| Dot Pitch | 0.05(W) x 0.15(H)mm | ||
| Brightness | 500cd/m | ||
| Contrast ratio | 700:1 | ||
| Response | 10ms | ||
| Video | Input | HD-SDI | 270Mbps, 1.485Gbps, 2.96Gbps |
| HDMI | 720p/1080i/1080p | ||
| VGA | VGA 640x480 ~ UXGA 1600x1200 | ||
| CVBS | NTSC/PAL | ||
| Output | HD-SDI | Throughput (loop-out) | |
| CVBS | Throughput (loop-out) | ||
| Power | Input | DC 12V | |
| Output | DC12V / 1000mA | ||
| PTZ Controller | RS-485 | PELCO-D, PELCO-P, Samsung, Vicon, Sanyo, Sony, LG, Minking, Molyax, Lilin | |
| Battery | Li-Polymer 7,4V / 5200mAh (Surge protection) | ||
| Temperature | 0C ~ +50C | ||
| Dimensions | 250 x 158 x 50mm | ||
