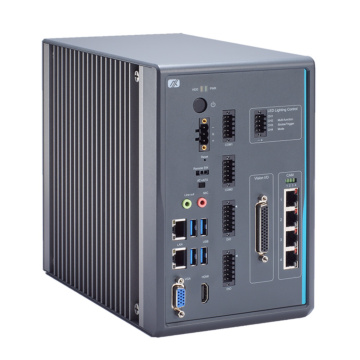

MVS900-512-FL
SKU
MVS900-512-FL_v1
Lead time 21-30 days
0.00EUR
Fanless Vision System with LGA1151 Socket 7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor, Intel® Q170, Vision I/O, 4-CH PoE and 4-CH LED Output
| System | |
| Processor | 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processors, up to 65W (Kaby Lake/Skylake) |
| CPU Performance | - Core™ i7-6700/T - Core™ i5-6500/T - Core™ i3-6100/T |
| Security Hardware | |
| Chipset | Intel® Q170 |
| Storage | 2 x 2.5” SATA HDD/SSD Bay |
| Storage Support | |
| Memory | 2 x DDR4 SO-DIMM slot, up to 32GB |
| Graphics | |
| I/O Ports | |
| USB 2.0 | 1 x USB2.0 internal |
| USB 3.0 | 4x USB 3.0 |
| Serial | 2x RS-232/422/485 |
| Video | 1 x HDMI 1 x VGA |
| Ethernet | 3x GbE LAN , RJ-45 |
| Other Ports | 8/8 DIO with isolated 1.5kVDC protection Mic-in/Line-out 1x Remote Power On/Off Connector |
| Vision I/O | 4-CH trigger input (response time<1us, sink type,
input range: 0 to 30V) - 4-CH trigger output (response time<1us, sink type, open collector, output range: 0 to 30V, 100mA max./CH) - 4-CH LED lighting control (strobe mode: 24V, 1A per CH/trigger mode: 24V, 0.5A per CH) - 2-CH quadrature encoder input (A/B/Z)- 8-CH isolated DI (sink/source type, input range: 0 to 30V) - 8-CH isolated DO(sink type, open collector, supply voltage: 5-30V, 200mA max./CH) - Programmable interrupt functions |
| Camera Interface | 4 x IEEE802.3at GbE LAN port (PoE, Intel® i210-AT, IEEE802.3at compliant, total max. power output 60W) |
| Expansion | |
| Expansion Interface | 1 x Full-size PCI Express Mini Card slot with USB
& PICe signal 1 x M.2 2280 Key M slot, PCIe X4 Gen3 for NVMe SSD |
| Operating System | |
| Operating System | Windows® 10 |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 24VDC -230V AC-DC power adapter |
| Operating Temperature | |
| Operating Temperature | -10°C ~ +60°C with W.T. SSD, 35W TDP CPU |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 5.0 kg |
| Dimensions | 135 x 210 x 230 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | Optional Modules |
| Extra Features | |
| Certification | |
| Certification | CE, FCC certified |
| Cooling | Fanless |
|---|
