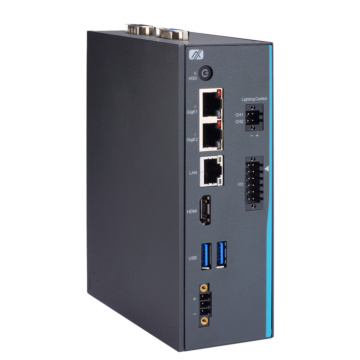

    Mini Vision System with Intel Atom® x5-E3940 Processor, Vision I/O, 2-CH PoE and 2-CH LED Output

    • Integrated real-time vision I/O
      2-CH trigger input
      2-CH trigger output
      2-CH LED lighting control
      4-CH isolated DIO
    • Supports camera interfaces
      2 IEEE802.3af GbE LAN ports (PoE)
    • Power input: 24 VDC
    • -10°C to +55°C operating temperature range
    • Supports TPM 2.0 function
    System
    Processor Intel® Atom® x5-E3940 processor (1.6GHz)
    Security Hardware TPM2.0
    Chipset SoC
    Storage mSATA (Full-size PCI Express Mini Card slot)
    Memory 1 x 204-pin DDR3L-1866 SO-DIMM, up to 8GB
    Graphics
    I/O Ports
    USB 2.0
    USB 3.2 2 x USB 3.2 Gen1
    Serial 1x RS-232/422/485
    Video 1 x HDMI
    1 x VGA
    Ethernet 1 x 10/100/1000 Mbps Ethernet (Intel® i211-AT)
    Other Ports 1x Remote Power On/Off Connector
    Vision I/O 2-CH trigger input (dry or wet contact, sink/source type, input range: 0 to 30V)
    2-CH trigger output (sink type, open collector, supply voltage:5 to 30V, 100mA max./CH)
    2-CH LED lighting control (12V/24V, max. 0.5A per CH)
    2-CH isolated DI (dry or wet contact, sink/source type, input range: 0 to 30V)
    2-CH isolated DO (sink type, open collector, supply voltage: 5 to 30V, 100mA max./CH)
    Programmable interrupt functions
    Camera Interface 2 x IEEE802.3af GbE LAN port (PoE, Intel® i210-AT, IEEE802.3af compliant, total max. power output 16W)
    Expansion
    Expansion Interface -
    Operating System
    Operating System Windows® 10
    Power
    DC Input / Source Voltage 3-pin terminal block
    Type: ATX/AT
    Input: 24 VDC±10%
    Operating Temperature
    Operating Temperature -10°C ~ +55°C with W.T. SSD
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 0.6 kg
    Dimensions 53.2 x 155 x 110.3 mm
    Enclosure
    Material Aluminum / Steel
    Mounting Desk / Wall mounting
    Certification
    Certification CE, FCC certified
    More Information
    CoolingFanless
