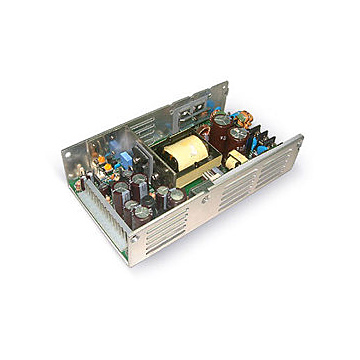

MPD-810H
SKU
MPD-810H
Lead time 14-22 days
120W ATX power supply
Input voltage 10~30VDC
Input voltage 10~30VDC
Input Voltage: The range of input voltage is from 10~30VDC
nominal input voltage is 12 and 24VDC
Input Current: The maximum input current is 18A at 10VDC input
Inrush Current: The inrush current is less than 30A at 10VDC input
Load Range: At the factory, the +5V output is set between 5.08V to 5.13V and all output at 60% rated load; the other outputs are checked to be within the accuracy range. The maximum total combined output power on the +3.3V and +5V rails is 70W. The max. load cannot exceed 120W
Ripple and Noise: The peak to peak ripple and noise for +5V, +3.3V output are less than 100mV for +5Vsb is 120mV, for +12V is less than 120mV, for -12V is less than 200mV at ranted load and nominal input, which is measured by a 20MHz bandwidth limited oscilloscope and the each output is connected with a 0.47£gF capacitor
Line Regulation: The line regulation is less than +/-2.5% at rated load with +/-10% change in input voltage
Load Regulation: The load regulation for +5V is less than +/-2 %, for +12V is less than ¡Ó5%, for -12V +/-5%, + 3.3V is less than +/-5% while the measuring is done by changing the measured output loading +/-40% from 60% rated load , and keep other output is at 60% rated load
Power On/Off: The power supply will start-up when the power On/Off pin be connected to secondary GND
Power Good Signal: The power is turned on, the power good signal will go high between 100ms to 500ms after all output DC voltage are within regulation limits
Power Fail Signal: The power fail signal will go low at least 1ms before any of the output voltages fall below the regulation limits
Efficiency: The efficiency is higher than 70% while measuring at nominal line and rated load
Altitude: Will operate properly at any altitude between 0 to 10000ft
Protection: The power supply will generate the hiccup mode to protect itself against short circuit or over load condition, and will return to normal after wrong condition is removed
Temperature: Operating: 0°~50°C (output power is 120W forced air cooling, 85W convection cooling)
Storage: -20°~+70°C
Humidity: 10~90% non-condensing
Connector: DC Input: Dinkle DT-35-B01W-03 or equivalent
DC Output: Molex 5273-14A or equivalent
DC Output: Molex 5045-03A or equivalent
Power Good Output: Molex 5045-02A or equivalent
Fan Output: Molex 5045-02A or equivalent
Dimensions: 8.38 x 15.24 x 3.81 cm; tolerance specified is +/-0.4mm
Safety Standards
Safety: UL 60950
CSA 22.2 No.234
EN 60950
EMI: FCC docket 20780 curve "B"
EN 55022 "B"
CE: IEC-801-2 Level 3 8KV air discharge
IEC-801-3 Level 3 3V/M
IEC-801-4 Level 3 2KV
