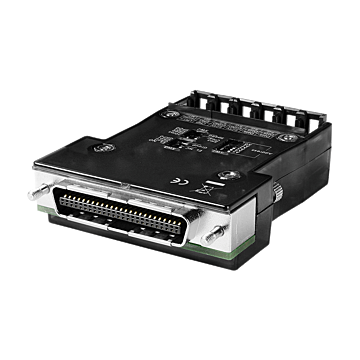

MN-SERVO-MJ3-EC

Distributed Motionnet Single-axis Motion Control Module with e-CON Mini-Clamp connector for Mitsubishi MELSERVO-J3/J4

• Maximum communication speed: 20 Mbps
• Pulse Output Rate: 6.6 MHz (Max.)
• Control up to 64 axes per line
• Multi-axis linear interpolation function
• 2-axis circular interpolation function
• T/S-curve acceleration and deceleration
• Change speed and position on the fly
• Slow down sensor, home sensor, positive and negative limit sensors for each axis
• Software limit and compare trigger output
• Three-way isolation for power, communication and I/O.(Provide better noise immunity and device protection)
• The EC module equipped with Mini-Clamp connector provide for an easier and debris-free wire termination process
