MMB566
SKU
MMB566
Coming

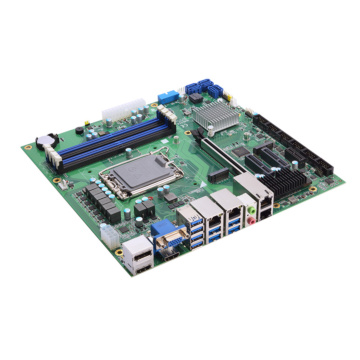

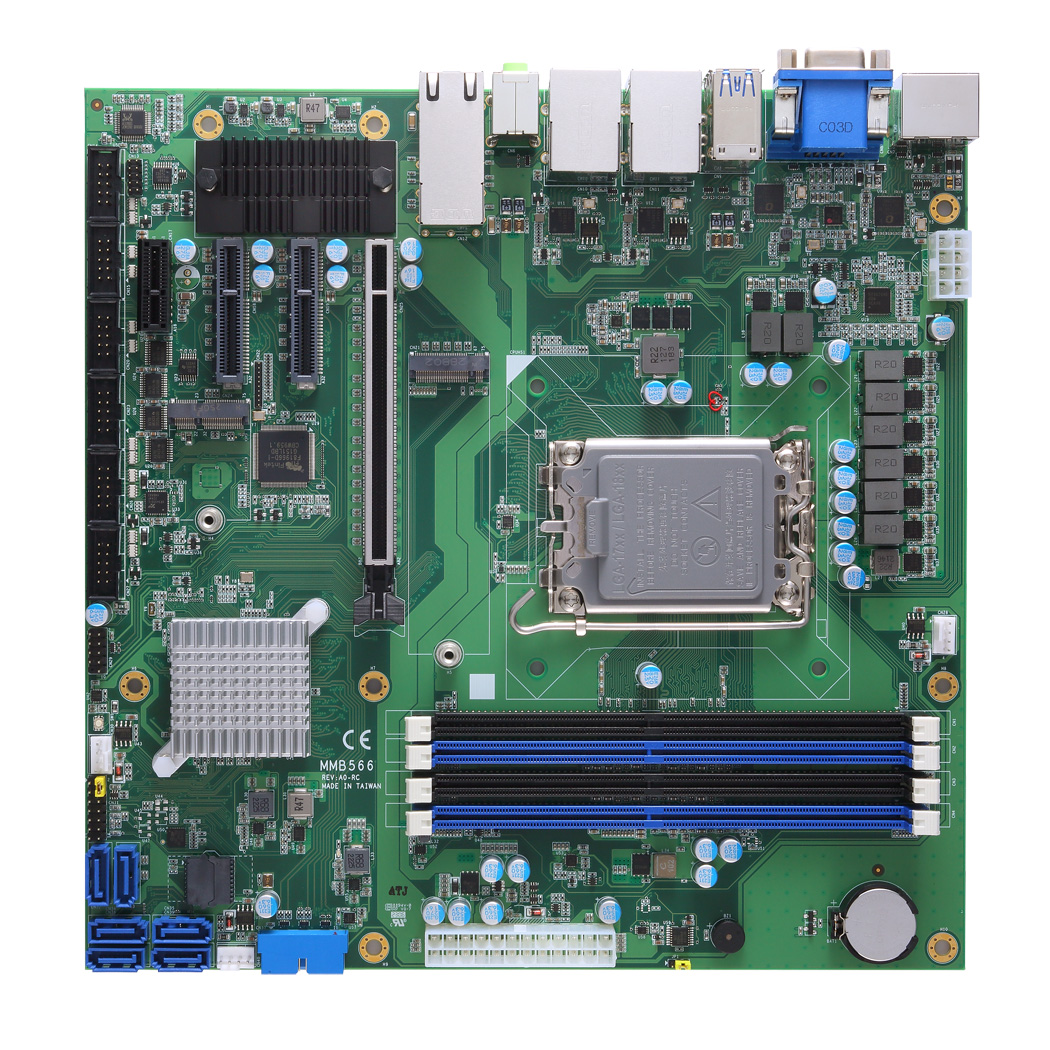

Micro ATX Motherboard with LGA1700 Socket 14th/13th/12th Gen Intel® Core™ Processor, Intel® Q670E/R680E/H610E, 2 HDMI, 1 DisplayPort++, 1 VGA, Two 2.5GbE LAN, and Two 10GbE LAN
- LGA1700 socket 14th/13th/12th gen Intel® Core™ i9/i7/i5/i3 or Celeron® processor
- Intel® Q670E/R680E/H610E chipset
- 4 DDR4-3200 Long DIMM, up to 128GB
- Two 2.5GbE LAN and Two 10GbE LAN (optional)
- 10 USB 3.2 Gen1
- 2 RS-232/422/485 and 4 RS-232
- 6 SATA 3.0 with RAID 0/1/5/10
- 1 PCIe x16, 2 PCIe x4, and 1 PCIe x1
- 1 M.2 Key M 2280 and 1 M.2 Key E 2230
| Form Factor | |
| Form Factor | ATX |
| System | |
| Processor | LGA1700 socket 14th/13th/12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (up to 65W) |
| Security Hardware | TPM 2.0 with Intel® PTT |
| Chipset | Intel® Q670E/R680E/H610E |
| Storage | 6 x SATA 3.0 with RAID 0/1/5/10 1 x M.2 Key M 2280 with NVMe support |
| Memory | 4 x DDR4-3200 Long-DIMM, up to 128GB |
| Graphics | |
| I/O Ports | |
| USB 2.0 | 2 x USB 2.0 (header, internal) |
| USB 3.1 | 10 x USB 3.2 Gen1 |
| Serial | 2 x RS-232/422/485 4 x RS-232 |
| Video | 1 x DisplayPort++ 1 x VGA 2 x HDMI |
| Ethernet | 2 x 10/100/1000/2500 Mbps (Intel® I226-LM) 2 x 10/100/1000/10000 Mbps (Intel® X550-AT2; optional) |
| Other Ports | DIO 8-channel programmable Audio SMBus IPMI 2.0 Redfish API 1 x PS/2 keyboard and mouse |
| Expansion | |
| Expansion Interface | 1 x PCIe x16 2 x PCIe x4 1 x PCIe x1 |
| Operating System | |
| Operating System | Windows11, Windows10 , Linux |
| Power | |
| Power Input | 24+8-pin ATX connector with AT Mode Auto Power support |
| Power Requirements | |
| Operating Temperature | |
| Operating Temperature | Operating Temperature 0°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | |
| Dimensions | 305mm x 244mm |
| Certification | |
| Certification | CE |
| Manufacturer / Brand | Axiomtek |
|---|---|
| Socket | LGA1700 |
| Form Factor | ATX |
