MMB541
SKU
MMB541
Lead time 21-30 days

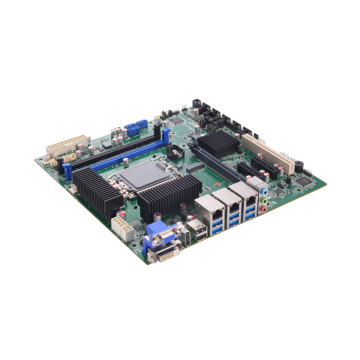

Micro ATX Motherboard with LGA1700 Socket 13th/12th Gen Intel® Core™ Processor, Intel® H610, USB 3.2 Gen1x1 , SATA 3.0, Dual GbE, 2.5GbE, VGA, DP and DVI-D
- LGA1700 socket 13th/12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (Raptor Lake S/Alder Lake S)
- Dual 288-pin DDR4-3200 Long-DIMM, up to 64GB
- DisplayPort, VGA, DVI-D with triple-view support
- Supports M.2 Key M 2280/2242
- Supports USB 3.2 Gen1x1 and USB 2.0
- Supports TPM 2.0 (optional)
| Form Factor | |
| Form Factor | mATX |
| System | |
| Processor | LGA1700 socket 13th/12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (up to 125W) |
| Security Hardware | TPM 2.0 (optional) |
| Chipset | Intel® H610 |
| Storage | M.2 Key M 2280/2242 (Supports SATA SSD) 3 x SATA-600 without RAID |
| Memory | Dual 288-pin DDR4-3200 non-ECC Long-DIMM, up to 64GB |
| Graphics | |
| I/O Ports | |
| USB 2.0 | 4 x USB 2.0 (Type-A, rear I/O) 1 x USB 2.0 (vertical Type-A, Internal) 4 x USB 2.0 (header, internal) |
| USB 3.1 | 4 x USB 3.0 (Type-A, rear I/O) |
| Serial | 4 x RS-232 1 x RS-232/RS-485/RS-422 1 x RS-232/RS-485 |
| Video | 1 x DP; max. resolution up to 4096 x 2160 @ 30Hz 1 x DVI-D; max. resolution up to 1920 x 1200@60Hz 1 x VGA; max. resolution up to 1920 x 1200@60Hz |
| Ethernet | 1 x 10/100/1000/2500 Mbps with Intel® I225-V; supports Wake-on-LAN, PXE Boot ROM 2 x 10/100/1000 Mbps with Intel® I210-AT |
| Other Ports | DIO 8-channel programmable MIC-in/Line-in/Line-out 1 x PS/2 keyboard (internal box header) |
| Expansion | |
| Expansion Interface | 1 x PCIe Gen4 x16 slot 2 x PCIe Gen3 x2 from PCH (with x4 open-ended slots) 1 x 32-bit PCI slot, default clock is 33 MHz |
| Operating System | |
| Operating System | Windows11, Windows10 , Linux |
| Power | |
| Power Input | ATX connector |
| Power Requirements | |
| Operating Temperature | |
| Operating Temperature | Operating Temperature 0°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | |
| Dimensions | 244mm x 244mm |
| Certification | |
| Certification | CE |
| Manufacturer / Brand | Axiomtek |
|---|---|
| Socket | LGA1700 |
| Form Factor | Micro ATX |
