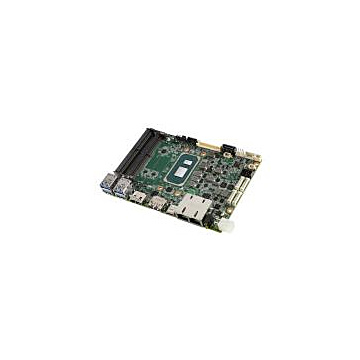

    11th Gen. Intel® Core U-series i7/i5/i3/Celeron 3.5" SBC w/ MIOe

    • 11th Gen. Intel® Core™ Processor with Quad/Dual Cores, TDP 15W/ 28W
    • Dual Channel DDR4-3200 up to 64GB
    • 4 simultaneous displays: LVDS/ eDP*, HDMI, DP, USB Type-C
    • 2 GbE, 4 USB3.1, CAN Bus, DC-in 12-24V
    • Expansion: M.2 E-Key/B-Key/M-Key (supports NVMe) , MIOe
    • Supports iManager, WISE-PaaS/RMM, SW API, and Edge AI Suite
    Form Factor
    Form Factor 3.5” SBC


    System
    Processor Intel® Core™ i7-1185G7E , 4-Core, 1.8Ghz
    Intel® Core™ i7-1185GRE , 4-Core 1.6Ghz
    Intel® Core™ i5-1145G7E, 4-Core 1.50Ghz
    Intel® Core™ i3-115G4E, 2-Core 2.20Ghz
    Integrated Graphics Intel® Iris® Xe graphics
    Security Hardware
    Chipset SoC, Intel 300 Series Chipset
    Storage 1 x SATA-600
    Storage Support
    Memory 2 x 240 Pin DDR4 SO-DIMM, max 32GB
    I/O Ports
    USB 2.0 2 x USB 2.0
    USB 3.1
    USB 3.2 4 x USB3.2
    1 x USB3.2 Type C
    Serial 2 x RS-232/422/485
    Video 1 x HDMI
    1 x Display Port
    LVDS 2ch 24bit
    Ethernet 2 x 10/100/1000 Mbps (Intel i219LM, i210AT)
    Other Ports 1 x GPIO
    1 x CAN Bus 2.0
    3 Audio Line-Out, Line-In, Mic-in
    1 x I2C
    Expansion
    Expansion Interface 1 x M.2 Slot E-Key 2230
    1 x M.2 Slot B-Key 3042
    1 x M.2 Slot M-Key 2080
    MIO extension
    Operating System
    Operating System Windows 10, Linux
    Power
    DC Input / Source Voltage 12V DC Input
    Operating Temperature
    Operating Temperature Operating Temperature 0°C to 60°C
    Humidity Range 10% ~ 95%, non-condensing
    Dimensions / Weight
    Weight (kg) 0.5kg
    Dimensions 146 x 102 mm
    Certification
    Certification CE
    More Information
    SocketSoC
    Form Factor3.5" Embedded
