MIO-5350
SKU
MIO-5350N-S2A2
Lead time 21-30 days

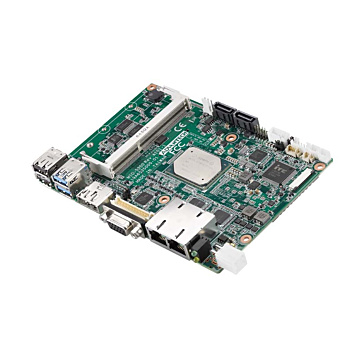

Intel® Pentium N4200 Celeron, 3.5" SBC w/ MIOe
- Intel® Pentium N4200, up to 8GB RAM
- 2 Intel i210 Gbe Ethernet
- 4COM, 2 SATA, 2 USB 3.0, SMBus/I2C, GPIO M.2 E Key, full-size mSATA, MIOe
| Form Factor | |
| Form Factor | 3.5” SBC |
| System | |
| Processor | Intel Pentium N4200 Intel Celeron N3350 (option) Intel Atom E3950 (wide-temp option) |
| Integrated Graphics | |
| Security Hardware | |
| Chipset | SoC |
| Storage | 2 x SATA-600 1 mSATA |
| Storage Support | |
| Memory | 1 x 204 Pin DDR3L SO-DIMM, max 8GB |
| I/O Ports | |
| USB 2.0 | 4 x USB 2.0 |
| USB 3.0 | 2 x USB3.0 |
| USB 3.2 | |
| Serial | 2 x RS-232 2 x RS-232/422/485 |
| Video | 1 x VGA 1 x HDMI LVDS 48bit |
| Ethernet | 2 x 10/100/1000 Mbps (Intel i210) |
| Other Ports | GPIO 3 Audio Line-Out, Line-In, Mic-in 1 x I2C |
| Expansion | |
| Expansion Interface | 1 x M.2 Slot E-Key |
| Operating System | |
| Operating System | Windows 10, Linux |
| Power | |
| DC Input / Source Voltage | 12V DC Input |
| Operating Temperature | |
| Operating Temperature | Operating Temperature 0°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 0.5kg |
| Dimensions | 146 x 102 mm |
| Certification | |
| Certification | CE |
| Manufacturer / Brand | Advantech |
|---|---|
| Socket | SoC |
| Form Factor | 3.5" Embedded |
