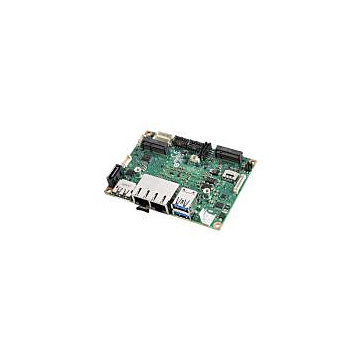

MIO-2375
SKU
MIO-2375-xxx
Lead time 21-30 days
0.00EUR
11th Gen. Intel® Core U-series i7/i5/i3/Celeron Pico-ITX SBC
- Intel® Tiger Lake-UP3 (10nm++) Series, On-board LPDDR4x-4266 up to 32G with IBECC
- Dual independent display: eDP/MIPI-DSI, DP up to 8K
- Rich I/O interface with GbE x 2, USB 3.2, COM Port, DIO SMBus, TPM2.0
- Flexible expansion to IoT connectivity: M.2 E-Key, M.2 B-Key/M-Key NVMe x2
- Supports Advantech iManager3.0, Embedded Software APIs, WISE-DeviceOn, and Edge AI Suite
| Form Factor | |
| Form Factor | PICO-ITX |
| System | |
| Processor | i7-1185G7E , 16GB RAM i7-1185GRE i5-1145G7E , 16GB RAM i3-1115G4E, 8GB RAM |
| Integrated Graphics | Integrated Intel® Iris® Xe Graphics |
| Security Hardware | |
| Chipset | SoC |
| Storage | 1 x SATA-600 |
| Storage Support | |
| Memory | LPDDR4x-4267, Onboard |
| I/O Ports | |
| USB 2.0 | 2 x USB 2.0 |
| USB 3.0 | |
| USB 3.2 | 2 x USB 3.2 |
| Serial | 1 x RS-232 1 x RS-232/422/485 |
| Video | 1 x DisplayPort |
| Ethernet | 2 x 10/100/1000 Mbps (Intel 219LM , 210AT/T) |
| Other Ports | GPIO 3 Audio Line-Out, Line-In, Mic-in |
| Expansion | |
| Expansion Interface | 1 x E-Key 2230 (PCIe x1, USB2.0) 1 x B-Key 3042/2242 (SATA x1, USB2.0 x1) w/ Nano-SIM |
| Operating System | |
| Operating System | Windows 10 |
| Power | |
| DC Input / Source Voltage | 12V DC Input |
| Operating Temperature | |
| Operating Temperature | Operating Temperature 0°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 0.1kg |
| Dimensions | 100 x 72 mm |
| Certification | |
| Certification | CE |
| Socket | SoC |
|---|---|
| Form Factor | Pico-ITX |
