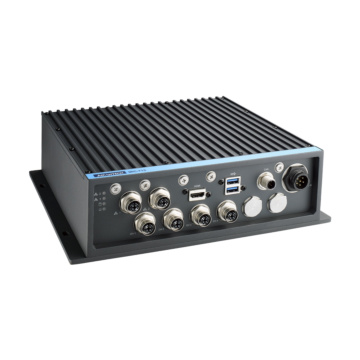

    Ruggedize AI Inference System Based on NVIDIA® Jetson™ Xavier NX. This in-vehicle AI system is compact, IP67 rated, waterproof fanless design.

    • Ruggedized IP67 waterproof fanless design
    • Embedded with NVIDIA® Jetson Xavier™ NX up to 21 TOPS
    • 2 x GbE and 4 x PoE with IEEE 802.3af compliance
    • 2 x USB 3.0, 2 x CANbus, 1 x HDMI
    • Linux OS with board support package (BSP)
    • Supports Allxon 24/7 remote monitoring and OTA deployment
    System
    Processor 8GB: 6-core NVIDIA Carmel ARM® v8.2 64-bit CPU
    GPU 384-core NVIDIA Volta GPU with 48 Tensor Cores
    Chipset SoC
    Storage 1 x Micro SD slot
    1 x M.2 Key B 2280 with PCIe x1 NVMe SSD slot
    Memory 8GB LPDDR4x onboard
    AI Accelerator NVIDIA® Jetson Xavier™ NX
    I/O Ports
    USB 2.0 -
    USB 3.0 2 x USB3.0
    Serial -
    Video 1 x HDMI
    Ethernet 6 x 10/100/1000 Mbps (4 x PoE support, IEEE 802.3af) in M12 X-coded, 8-pin female connector
    Other Ports 2 x CANBus
    Expansion
    Expansion Interface 2 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
    1 x Nano SIM slot
    1 x M.2 3052 (B-Key, signal: PCIe + USB)
    Operating System
    Operating System Linux Ubuntu 18.04 or later
    Power
    DC Input / Source Voltage Power Input Voltage 12/24V DC
    Operating Temperature
    Operating Temperature -25°C to 60°C
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Fanless
    Dimensions / Weight
    Construction Aluminum die-casting and heavy-duty steel,
    Weight (kg) 4.5kg
    Dimensions 275 x 220 x 80mm
    Certification
    Certification CB/UL/CE/FCC/CCC
    More Information
    CoolingFanless
