MIC-710AIX

Customize MIC-710AIX
MIC-710AIX Barebone

* Required Fields

Your Customization
MIC-710AIX
MIC-710AIX

0.00EUR

Summary
    SKU
    MIC-710AIX
    Lead time 14-22 days

    0.00EUR

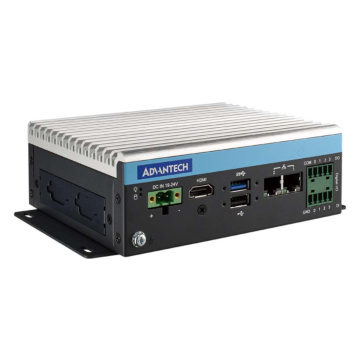

    AI System Based onNVIDIA® Jetson™ Xavier NX
    • Fanless compact design
    • Embedded with NVIDIA® Jetson™ Xavier NX up to 21 TOPS
    • Supports 2 x GbE, 1 x USB 3.0 , 1 x USB 2.0
    • Supports 1 x mPCIe, 1 x M.2 2280 (SATA interface)
    • Supports Allxon 24/7 remote monitoring and OTA deployment; Azure Certified Devices
    System
    Processor ARMv8.2 (64-bit) heterogeneous multi-processing (HMP) CPU architecture | 3 x dual-core CPU clusters(six NVIDIA Carmel processor cores) (Max. Operating Frequency: 1.9 Ghz
    GPU / Graphics 384 CUDA Core, 48 Tensor Cores, Performance up to 21 TOPS (INT8)
    Max. operating frequency: 1100 Mhz
    Security Hardware
    Chipset SoC
    Storage 16G of eMMC
    1 x M.2 2280 (M Key)
    1 x Micro SD


    Memory 8 GB 128-bit LPDDR4x DRAM
    I/O Ports
    USB 2.0 1 x USB2.0
    1 x USB2.0 (internal)
    USB 3.0 1x USB 3.0
    Serial 1 x RS-232/RS-422/RS-485
    Video 1 x HDMI
    Ethernet 2 x 10/100/1000 Mbps (Intel® i211)
    Other Ports DIO, 4x input, 4x output
    Expansion
    Expansion Interface 1 x mPCiE
    Operating System
    Operating System Linux (Ubuntu 18.04 with JetPack)
    Power
    DC Input / Source Voltage 19-24V DC
    Operating Temperature
    Operating Temperature -10°C ~ +60°C
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 1.2 kg
    Dimensions 147 x 118 x 52 mm
    Enclosure
    Bezel
    Material Aluminum , metal
    Mounting Desk / Wall mounting
    Peripherals & Devices
    Accessories
    Extra Features
    Certification
    Certification CE/FCC/BSMI
    More Information
    CoolingFanless
