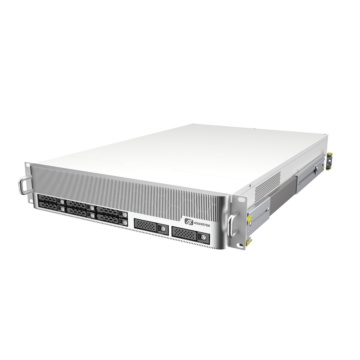

    2U Rackmount Server with Dual 4th Gen Intel® Xeon® Scalable Processor, Intel® C741 PCH for HPC in Medical Applications

    • Dual 4th Gen Intel® Xeon® Scalable processors
    • 16 DDR5-4800 ECC registered DIMM
    • Supports 2 U.3 SSD, 6 SATA SSD slots
    • 1600W redundant power ATX power supply
    • Supports DP full HD output
    • Supports dual 10G Base-T
    System
    Processor Dual socket FCLGA4677 for 4th Generation Intel® Xeon® Scalable processors
    Security Hardware
    Chipset Intel® C741, TDP 11W
    BMC: ASpeed AST2600
    Storage 6 x 2.5" SATA SSD swappable slot; support RAID 0,1,5,10
    2 x 2.5" U.3 SSD swappable slot; support RAID 0,1,5,10
    Memory 16 x DDR5-4800 ECC RDIMM, up to 512GB
    Graphics 1 x DisplayPort 1.1a (2560x1600)
    I/O Ports
    USB 2.0
    USB 3.0 4x USB 3.0
    1x USB 3.0 type C
    Serial n/a
    Video 1 x DP
    Ethernet 1 x Network card supports dual 10G Base-T
    1 x IPMI 1 GbE LAN
    Other Ports
    Expansion
    Expansion Interface 2 PCIe riser cards inside:
    **Riser Card #0: 2 x PCIe x16 Gen 5.0 slot
    **Riser Card #1: 2 x PCIe x16 Gen 5.0 slot
    1 x M.2 Key M 2280 slot, with PCIe x4 (NVMe)
    Operating System
    Operating System Windows® 10
    Power
    DC Input / Source Voltage 2 x 1600W redundant ATX power supply
    Operating Temperature
    Operating Temperature 0°C ~ +40°C
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Fan
    Dimensions / Weight
    Weight (kg) 13 kg
    Dimensions 430 x 700 x 88 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Rack
    Peripherals & Devices
    Accessories
    Extra Features
    Certification
    Certification TBC
    More Information
    CoolingChassis Fan
