MEC-USB-PL008
SKU
MEC-USB-PL008
Lead time 14-22 days

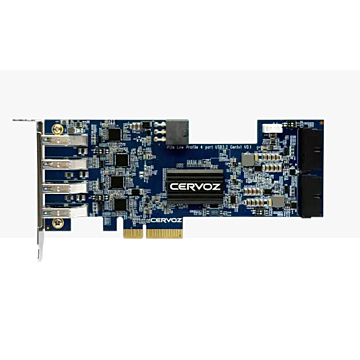

PCI- e low profile 8 port USB3.2 board
- Quad-Lane (x4) PCI-Express with throughput up to 5.0/2.5GT/s
- 8-port USB 3.2 PCI Express Card with 4 independent host controllers
- 900 mA/1500 mA max. per port configurable via switch settings
- Support Hot-Swap function
- Support individual four USB devices running 5Gbps at full speed
- Support simultaneous operation of multiple USB 1.1, USB 2.0, and USB 3.2 GEN1x1 devices
- USB data transfer rate of 1.5/ 12/ 480/ 5000 Mbps
| USB Interface | |
| USB Standards | USB 3.2 |
| Speed | 5 Gbps |
| PCIe | PCIex4 |
| No. of USB Ports | 8x USB3.2 |
| Controller | Renesas (NEC) μPD720202K8-701-BAA-A x4 |
| Power Parameters | |
| Input Voltage | 1700mA @3.3V, Maximum 3A @12V w/PCIe slot, Maximum 3A @12V w/4 pin Power cable, Maximum 5.5A @12V w/6 pin PCIE-ATX |
| Reverse Polarity Protection | - |
| Output Power Rating |
5V@900mA, 5V@1500mA, (900/1500 mA maximum per port configurable via switch settings)
|
| Physical | |
| Housing | |
| Dimensions | 68.90 x 158.00 mm |
| Operating Temperature | 0 to 70°C |
| Storage Temperature | |
| Manufacturer / Brand | Cervoz |
|---|
