M.2 PCIe Module with 2x Gbe Isolated Ethernet LAN, Wide-Temp
SKU
MEC-LAN-2002i
Lead time 14-22 days
194.53EUR 155.00EUR

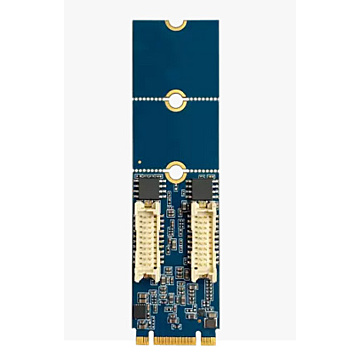

M.2 PCIe Industrial 2-port GbE isolated Ethernet board (-40℃~+85℃) / 1x Universal Bracket with 2x RJ45 Cutout
- Single-Lane (x1) PCI-Express with throughput up to 5.0/2.5Gbps
- Fully compliant with PCI-Express Base Specification Rev. 2.0
- Integrated 10/100/1000Mbps transceiver
- IEEE 802.3x Full-Duplex flow control
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and IEEE 802.3z compliant
- Complies with EN61000-4-2(ESD) Air-15kV, Contact-8kV
- Complies with EN61000-4-4(EFT) 2kV
- Complies with EN61000-4-5 2kV Surge protection
System | |
Controller | Intel I210 x 2 |
Form Factor | M.2 B+M Key |
Interface | 2x RJ-45 |
Bus | Single-Lane x1 PCI-Express 5.0/2.5Gbps |
Physical Characteristics | |
Dimension | 22x42mm /60mm /80mm |
Operating Temperature | -40..85C |
Driver Support | Win10, Linux |
![](https://www.ipcmax.com/media/catalog/product/m/e/mec-lan-2002i_2.jpg)
![](https://www.ipcmax.com/media/catalog/product/m/e/mec-lan-m602_2_1.jpg)
Manufacturer / Brand | Cervoz |
---|
