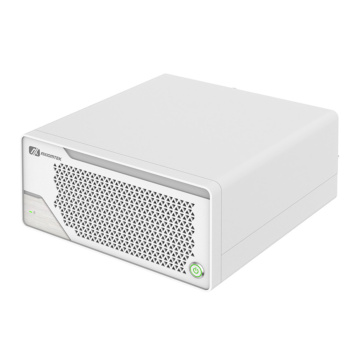

    Medical Grade System with 13th Gen Intel® Core™ i9/i7/i5/i3 Processor for Smart Healthcare Applications

    • 13th gen Intel® i9/i7/i5/i3 processor with Intel® R680E chipset, up to 65W TDP
    • 2 DDR4-3200 SO-DIMM, up to 64GB memory
    • 2 HDMI 1.4b and 1 DisplayPort++ 1.2 with 4K UHD resolution
    • 2 COM and two 2.5GbE LAN
    • 2 PCIe x16 expansion slots for GPU and capture cards
    • 1 M.2 Key E 2230 and 1 M.2 Key B 3052/3042
    • 1 M.2 Key M 2280 slot and two 2.5" SATA III drives
    System
    Processor 13th gen Intel® Core™ i9/i7/i5/i3 processor, up to 65W TDP
    CPU Performance
    Security Hardware TPM2.0
    Chipset Intel® R680
    Storage 2 x 2.5" hot-swappable SATA III drives with RAID 0/1 support
    1 x M.2 Key M 2280 NVMe SSD slot
    Storage Support
    Memory 2 x 260-pin DDR4-3200 SO-DIMM, up to 64GB with ECC support
    Graphics Intel® UHD Graphics
    I/O Ports
    USB 2.0 -
    USB 3.0 4x USB 3.2
    Serial 2x RS-232/422/485 (with +5/12V power)
    Video 2 x HDMI 1.4b (4096 x 2160 @30Hz)
    1 x DisplayPort++ 1.2 (4096 x 2160 @60Hz)
    Ethernet 2 x 10/100/1000/2500 Mbps Ethernet (Intel® I226-LM; Intel® AMT)
    Other Ports 1 x MIC-in/Line-out
    Expansion
    Expansion Interface 1 x Double-width PCIe x16 slot with PCIe x8 Gen4 signal supporting various GPU cards
    1 x PCIe x16 slot with PCIe x8 Gen4 signal
    1 x M.2 Key E 2230
    1 x M.2 Key B 3052/3042
    Operating System
    Operating System Windows® 10, Linux
    Power
    DC Input / Source Voltage 100 to 240V AC input, 500W/900W medical-grade PSU
    Operating Temperature
    Operating Temperature 0°C ~ +40°C
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Fan
    Dimensions / Weight
    Weight (kg) 7 kg
    Dimensions 310 x 332 x 145mm
    Enclosure
    Bezel
    Material
    Mounting
    Peripherals & Devices
    Accessories
    Extra Features
    Certification
    Certification CE, FCC Part 18
    IEC60601-1 Ed3.2 compliance
    More Information
    Manufacturer / BrandAxiomtek
    CoolingChassis Fan
    CPU FamilyAlder Lake (12th Gen Core i3/i5i7/i9)
    Operating TempNormal Temp 0..45C
