mBox600
SKU
mBox600
Lead time 21-30 days
0.00EUR

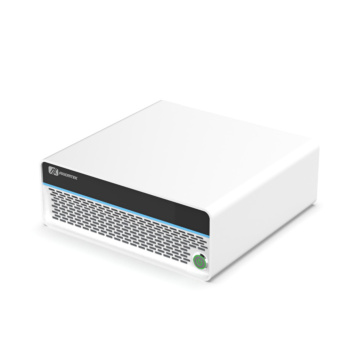

Medical Grade System with 9th/8th Gen Intel® Core™ i7/i5 Processor for Smart Healthcare Applications
- Intel® Xeon® & 8th Gen Intel® i7/i5/i3 processors (Coffee Lake), TDP 45W
- 2 DDR4-2400 SO-DIMM for up to 64GB memory
- 1 HDMI and 2 DisplayPort++ with 4K UHD supported
- 2 COM and 2 GbE LAN support 4kV isolation
- Supports half-size PCI Express x16 slot
- Swappable 2.5" SATAIII SSD tray with security lock
| System | |
| Processor | Intel® Xeon® & 8th gen Intel® Core™ i7/i5/i3 processors |
| CPU Performance | |
| Security Hardware | |
| Chipset | Intel® CM246/QM370/HM370 |
| Storage | 1 x 2.5" SATAIII SSD 1 x M.2 Key M 2280 NVMe SSD slot |
| Storage Support | |
| Memory | 2 x 260-pin DDR4-2666 non-ECC SO-DIMM, up to 64GB |
| Graphics | Intel® UHD Graphics 630 Supports Gfx - DX12.0, OCL2.0, OGL4.3/4.4 |
| I/O Ports | |
| USB 2.0 | - |
| USB 3.0 | 4x USB 3.1 |
| Serial | 2x RS-232/422/485 |
| Video | 1 x HDMI 1.4 2 x DisplayPort 1.2 |
| Ethernet | 2x GbE LAN , RJ-45 |
| Other Ports | |
| Expansion | |
| Expansion Interface | 1 x Full-size PCI Express Mini Card slot (USB + PCIe
signal) 1 x Half-size PCI Express x16 Gen3 slot |
| Operating System | |
| Operating System | Windows® 10, Linux |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 12~24VDC |
| Operating Temperature | |
| Operating Temperature | 0°C ~ +40°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Fan |
| Dimensions / Weight | |
| Weight (kg) | 4 kg |
| Dimensions | 250 x 240 x 90 mm |
| Enclosure | |
| Bezel | |
| Material | |
| Mounting | |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE, FCC, UL IEC-60601 Compliance |
| Cooling | CPU tuuletin |
|---|
