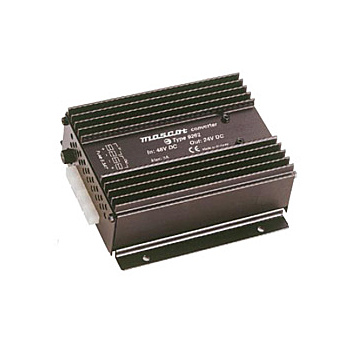

Mascot 9262 24V/12V DC-DC Converter
SKU
mascot9262
Lead time 21-30 days
100.20EUR 79.84EUR
81W 24V/12V voltage converter. Designed for machines and trucks. Protection against reversed polarity, overvoltage and high transients. Output short circuit, thermal and over voltage protection.
Details
Designed for trucks and machines where high voltage transients may occure.
Transients protection up to 150V!
Protected against reversed polarity and overvoltage (transorb diode against transients). Switches off
automatically at input voltages over or under the specified range. Fuse at input.
Thermal protection, short circuit proof and overvoltage protection (output).
Input and output are electrically separated from chassis. Input is electrically separated from output.
6,3 mm push-on terminals (input and output).
Transients protection up to 150V!
Protected against reversed polarity and overvoltage (transorb diode against transients). Switches off
automatically at input voltages over or under the specified range. Fuse at input.
Thermal protection, short circuit proof and overvoltage protection (output).
Input and output are electrically separated from chassis. Input is electrically separated from output.
6,3 mm push-on terminals (input and output).
Package includes
1x Mascot 9262 24V/12V DC-DC Converter
Specifications
* Input voltage: 21-40 VDC
* Output voltage: 13,2 VDC
* Max. output power
- Continuous: 81W
- Intermittent: 132W
* Load current
- Continuous (-20oC - +30oC): 6,0 A
- Intermittent: 8,0 A
- Linearly derating to (at +60oC): 3,0 A
* Load regulation (0-6,0 A load and 24 VDC input voltage): 5%
* Line regulation (20-32 V input voltage and 6 A load): 5%
* Switch frequency approx: 50 kHz
* No load current approx: 50 mA
* Temperature range: -20C- +30C
* Ripple (6 A load and 28 V input voltage): 10 mV RMS
* Efficiency (6 A load and 28 V input voltage): 83%
* EMC standards
- Emission: EN 580081-1
- Immunity: EN 580082-1
* Dimensions (LxWxH): 135 x 119 x 46 mm
* Weight: 600g
* Output voltage: 13,2 VDC
* Max. output power
- Continuous: 81W
- Intermittent: 132W
* Load current
- Continuous (-20oC - +30oC): 6,0 A
- Intermittent: 8,0 A
- Linearly derating to (at +60oC): 3,0 A
* Load regulation (0-6,0 A load and 24 VDC input voltage): 5%
* Line regulation (20-32 V input voltage and 6 A load): 5%
* Switch frequency approx: 50 kHz
* No load current approx: 50 mA
* Temperature range: -20C- +30C
* Ripple (6 A load and 28 V input voltage): 10 mV RMS
* Efficiency (6 A load and 28 V input voltage): 83%
* EMC standards
- Emission: EN 580081-1
- Immunity: EN 580082-1
* Dimensions (LxWxH): 135 x 119 x 46 mm
* Weight: 600g
| Input Voltage | 24V DC |
|---|---|
| Output voltage | DC12V |
| Power | 90W |
| Applications | Indoor |
